My Little Markov Model - Now Tweeting New Taylor Swift Lyrics

Picture This…

You’re sitting at your desk browsing the news and you see a head line something like:

You’re skeptical but you check out the AI startups demos and sure enough it looks like it could pass most first year university degrees with a 4.0.

Now imagine you’re in a Masters of Data Science program, working on a lab that is writing a basic text generation model from scratch and you read the same headline. I suspect you would feel somewhere about here on the Dunning-Kruger curve:

You finally get to the magical moment you spent 5hrs getting to and it starts generating new text based on Taylor Swift lyrics and you have a hard time telling which are real and which are fake, try it for yourself:

This sparked myself and Jonah Hamilton onto the idea for a fun project!

Now you might be wondering how we achieved that and how simple was it REALLY? Well read on to learn something new!

Challenge: Build a text generation model from scratch and Tweet with it

Breaking this down into steps we needed to:

1. Build a text generation model (in base python)
2. Scrape sample text to train on (e.g. Taylor Swift lyrics)
3. Setup a Twitter account and access the Developer API’s
4. Deploy the models to Google Cloud to Tweet regularly

TLDR: It’s Alive and Tweeting like TSwift & Sherlock Holmes @mylittlemarkov!

Here are it’s latest tweets!
Tweets by mylittlemarkov

Tweet Generation: Markov Model

This idea originated from an Algorithms and Data Structures lab where we were asked to code the “training” of a Markov Model.

Attribution: the lab exercise was adapted with permission from Princeton COS 126, Markov Model of Natural Language. Original assignment was developed by Bob Sedgewick and Kevin Wayne and adapted for the Masters of Data Science program by Mike Gelbart. All code and figures unless otherwise attributed were created by Ty Andrews and Jonah Hamilton.

A Markov Model uses the text you give it and learns that for every unique series of N letters, e.g. N = 2, there are some letters which are more likely to follow some than others. For example, if you only look at any two letters such as “TH” and guess what letter follows it you’d likely say “E” or “I”. This is what a Markov Model does.

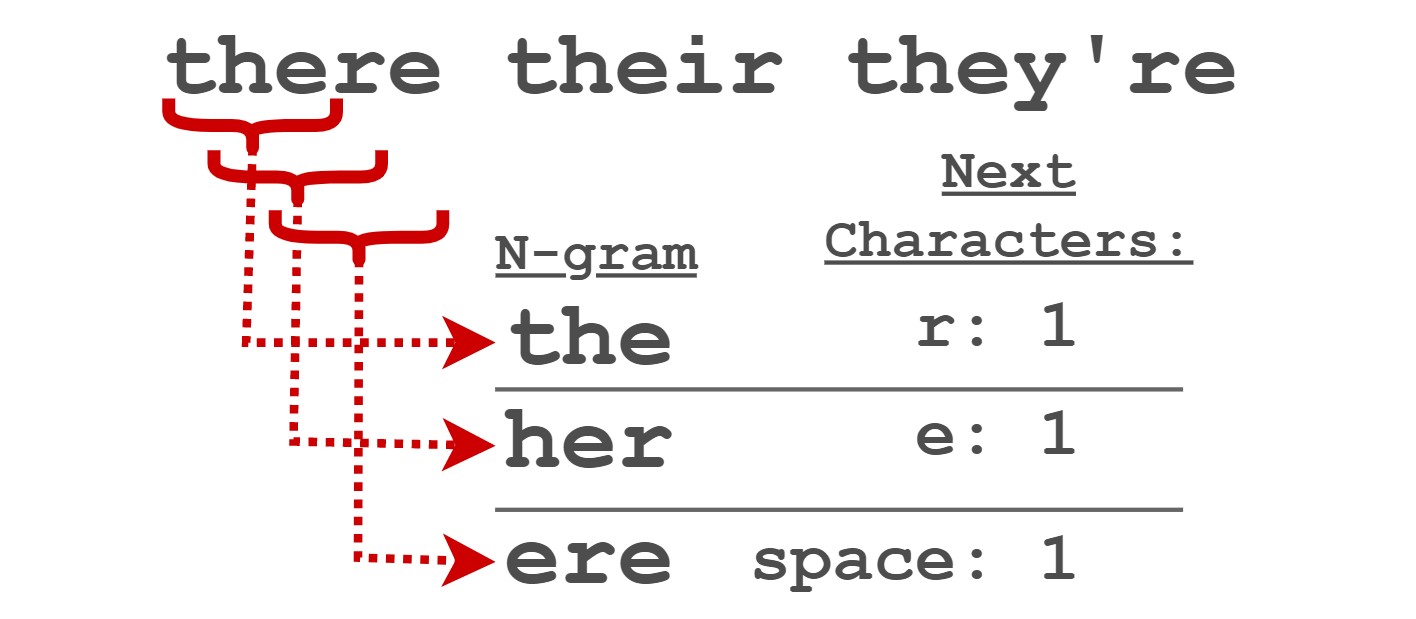

This is a bit hard to visualize so lets look at an example. Say we have text that contains “their there they’re” and an N of 3. We start by sliding across each N-gram of size 3 and counting the letters that follow.

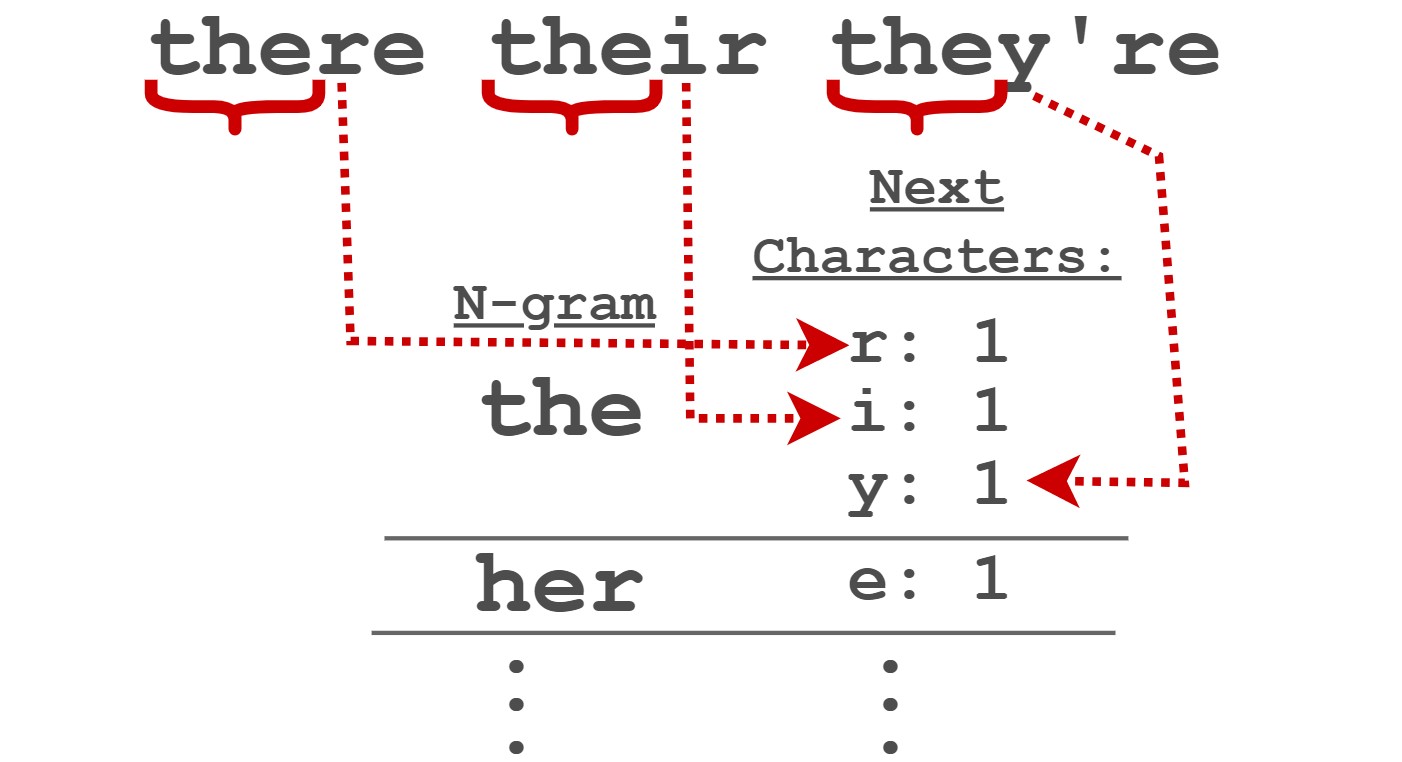

Once we’ve slid across the entire text we have some N-grams with multiple letters and some with only one.

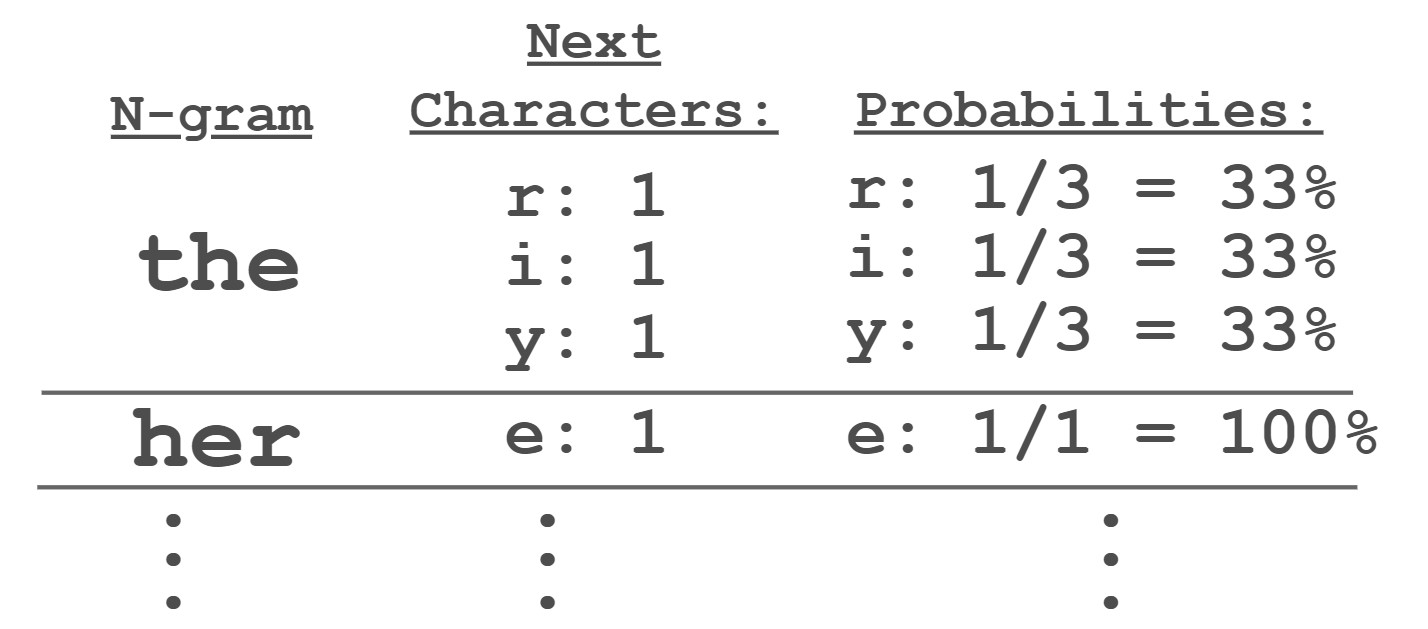

With these counts we generate the probability of each letter following that N-gram. So for the example “the” we see that each of “r/i/y” have a 33% probability of following the N-gram “the”.

We’ve been asked not to include our coded solution so as to not give the solutions to following cohorts but here’s some useful pseudo code and brief explanation of how you do it.

So to code this we first start off by finding all the unique N-grams and counting which letters follow them. We did this with default dictionaries but there are two useful data structures from the collections package, specifically Counter and DefaultDict which make our lives much simpler.

• defaultdict - a dictionary like data structure which deals with a key not existing by creating it on assignment of a value to a new key. A default data type must be set as the default_factory meaning when it creates new objects internally what data structure should they be.
• Counter - dictionary like object that on setting of a value will either initialize it if it doesn’t already exist and set to 1, or increment the value by 1.

Once we have the counts of each letter for each n-gram for a given text, we divide the letter counts by the total number of letter counts to get a probability for each letter of occurring between 0 and 1.

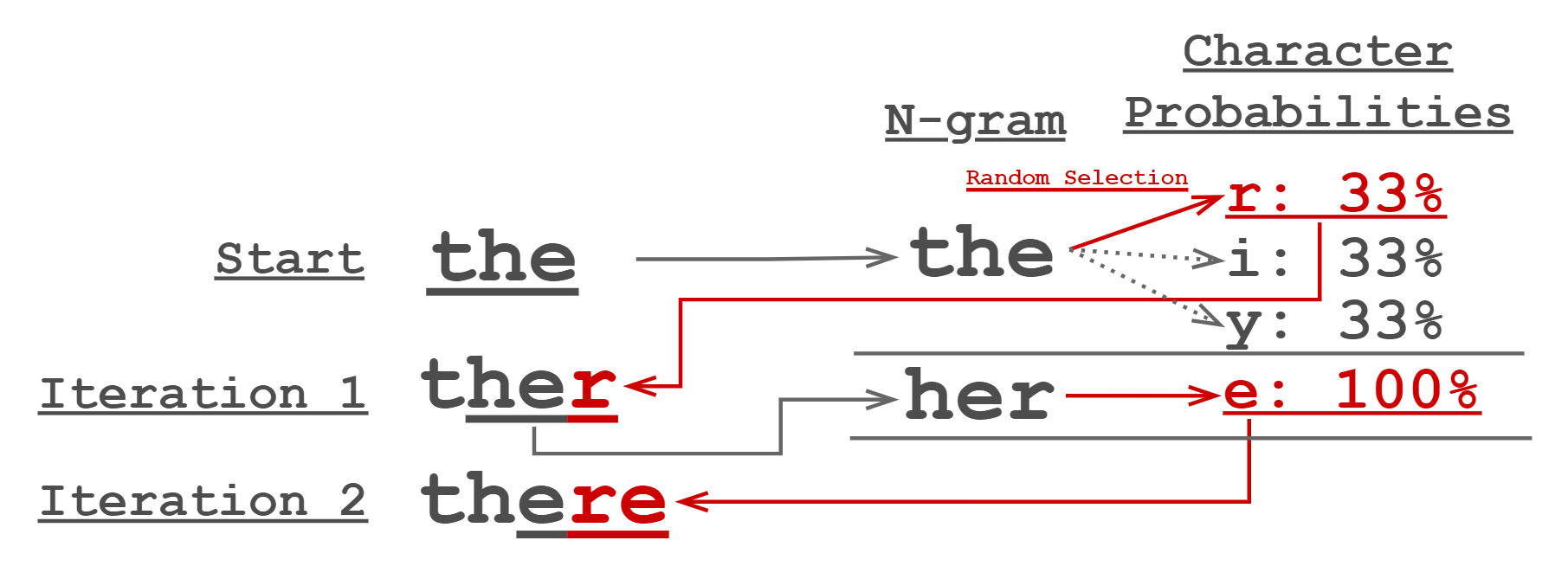

And finally with these probabilities of N-grams and letters we can generate new text! All we do is tell it how many characters to generate. Then give it a starting N-gram which then is found in the dataset of N-grams and the following letter probabilities. Once a letter has been selected from the likely candidates the process repeats now with the new N-gram.

The code to run the text generation is as follows:

# the start prompt to start generating from
s = "the"

# how many characters to generate
sequence_length = 100

while len(s) < sequence_length:

    current_ngram = s[-N :]

    # check if the ngram exists to pull letter probabilties from
    # if not just use a space
    if current_ngram in ngram_dict.keys():
        next_letter = np.random.choice(
            a=list(ngram_dict[current_ngram].keys()),
            p=list(ngram_dict[current_ngram].values()),
        )
    else:
        next_letter = " "

    # append the chosen letter and start over again
    s = s + next_letter

Once all characters are generated you’ve just made your first text generation model!

Now after this is the hard part, ensuring the text is coherent! Here are some things we did to achieve decent results:

1. Tune the parameter N from 3-20 and inspect sample generated results
   We had to be careful as too large of an N-gram and it just memorizes sentences, inspecting result at each stage helps this

2. Tokenize useful two character symbols like new line “\n” characters
   Replacing “\n” with a “^” symbol before training then reinserting after generation works

3. Truncate generated text to natural finishing points
   Since we generate until we have X characters, the ends of these strings don’t make sense. We find periods and new line characters and truncate after them.

4. Writing custom model saving/loading functions to keep size of n-gram, weights etc. together
   This also included start prompts for the model so it used real segments from the training data stored with the model to be used upon generation.

Now with all of this we get to pick some text to train on! We started with the following corpuses:

• Taylor Swift Lyrics - as you saw above, we found a dataset of all of Taylor Swifts lyrics publicly available HERE
• Trumps Tweets - again a nicely compiled list of all of Trumps Tweets is available HERE
• All of the Sherlock Holmes Books: Sir Arthur Conan Doyle - we found a public compiled document that included all of his texts

To attempt to visualize the absurdity of these we got a computer generated image from OpenAI’s DALL-E 2 image generation demo given the prompt: “A blond female singer in her 30’s, an orange faced politician in his 70’s and Sherlock Holmes are sitting on a red couch on a tv show arguing with each other in hyper realism.”

Twitter Bot: Tweepy & Twitter Developer API

With the Markov Model up and running the next task at hand was to connect to the Twitter API. Lucky for us there is a ready-made Python library that is designed exactly for this purpose called Tweepy.
​
Using Tweepy greatly simplifies the process of authentication and interaction with Twitter API. Tweepy allows users to easily do anything you normally might do on Twitter but with the added benefit of being able to programmatically define how and what those actions might be.
​
Before we could get our bot fired up, we needed to obtain access to the Twitter API. The process is well documented online and a step-by-step process can be found HERE, but the main points are listed below. ​

1. Sign up for a Twitter developer account
2. Create a project for your application
3. Apply for “Elevated Access” to be able to to tweet and not just scrape tweets
4. Generate your Twitter API Credentials
5. Using Tweepy connect to the Twitter API using the above credentials

​ Like most things in life when something seems straightforward it rarely is (especially in the world of programming). Building the bot was not too much of a hassle given we had access to Tweepy but authenticating to the API with correct credentials was a bit of mucking around so we hope we can save you some of that should you want to do this in the future!

Below is the code that we were able to authenticate correctly with. ​

class TwitterBot:
    """A twitter bot that will post tweets generated from a Markov model of languages based on character frequencies in text."""

    def __init__(self):

        self.verified_api = None

    def create_authenticate_api(self):

        """creates and authenticates an twiter api . Access token/Consumer keys
        must be available

        Returns:
            twitter_api: An authenticated twitter api that can be used to interact
            with the twitter environment
        """
        # pulls keys/secrets from env
        consumer_key = os.getenv("TWITTER_CONSUMER_KEY")
        consumer_secret = os.getenv("TWITTER_CONSUMER_SECRET")
        access_token = os.getenv("TWITTER_ACCESS_TOKEN")
        access_token_secret = os.getenv("TWITTER_ACCESS_TOKEN_SECRET")

        # sets up authentication
        auth = tweepy.OAuthHandler(consumer_key, consumer_secret)
        auth.set_access_token(access_token, access_token_secret)

        # creates twitter api object
        twitter_api = tweepy.API(
            auth,
            wait_on_rate_limit=True,  # wait_on_rate_limit_notify=True
        )

        # tests if authentication is successful
        try:
            twitter_api.verify_credentials()
            self.verified_api = twitter_api
        except Exception as e:
            logger.error("Error creating API", exc_info=True)
            raise e
        logger.info("API created")

​ And finally the actual sending of the tweet is quite simple, this is all that’s needed once you’ve authenticated!

def send_tweet(self, tweet_text):

     # success flag
     success = False

     # attempts to send tweet
     try:
         self.verified_api.update_status(tweet_text)
         success = True
         logger.info("Tweet sent")
     except Exception as e:
         logger.error("Error tweeting tweet", exc_info=False)
         raise e

     return success

Deploy: Cloud Run and Docker

Now pulling all the pieces together there were 3 main pieces to deploying this:

1. Randomly select one of the trained models and generate the Tweet
2. Authenticate to the Twitter API and send the Tweet
3. Schedule this to run every hour from 9AM - 9PM 7 days a week

The source code found in the my-little-markov-model GitHub repository was packaged up into a Docker image with the entry point just being the main.py file which kicks off the generation and Tweeting.

Googles Cloud Build service was used for managing builds and storing in Google Artifact Registry. From Artifact Registry the newly built image is selected and deployed to a Cloud Run instance.

All of this is orchestrated in the cloudbuild.yaml file, you can see the steps above outlined below:

steps:
  # Install dependencies
  - name: python
    entrypoint: pip
    args: ["install", "-r", "requirements.txt", "--user"]

    # Docker Build
  - name: 'gcr.io/cloud-builders/docker'
    args: [ 'build', '-t', 'us-central1-docker.pkg.dev/${PROJECT_ID}/${_ARTIFACT_REGISTRY_REPO}/${_DOCKER_IMAGE_NAME}:$SHORT_SHA', '.']

  # Docker push to Google Artifact Registry
  - name: 'gcr.io/cloud-builders/docker'
    args: ['push',  'us-central1-docker.pkg.dev/${PROJECT_ID}/${_ARTIFACT_REGISTRY_REPO}/${_DOCKER_IMAGE_NAME}:$SHORT_SHA']

  # Deploy to Cloud Run, make sure cloudbuild service account has cloud run write permissions
  - name: google/cloud-sdk
    args: ['gcloud', 'beta', 'run', 'jobs', 'update', '${_CLOUD_RUN_NAME}',
           '--image=us-central1-docker.pkg.dev/${PROJECT_ID}/${_ARTIFACT_REGISTRY_REPO}/${_DOCKER_IMAGE_NAME}:$SHORT_SHA',
           '--region', 'us-central1']

substitutions:
  _ARTIFACT_REGISTRY_REPO: '<DIRECTORY IN ARTIFACT REGISTRY WHERE IMAGE IS BUILT TO>'
  _DOCKER_IMAGE_NAME: '<NAME TO GIVE BUILT IMAGE>v'
  _CLOUD_RUN_NAME: '<CLOUD RUN SERVICE NAME>'
images:
- 'us-central1-docker.pkg.dev/${PROJECT_ID}/${_ARTIFACT_REGISTRY_REPO}/${_DOCKER_IMAGE_NAME}:$SHORT_SHA'

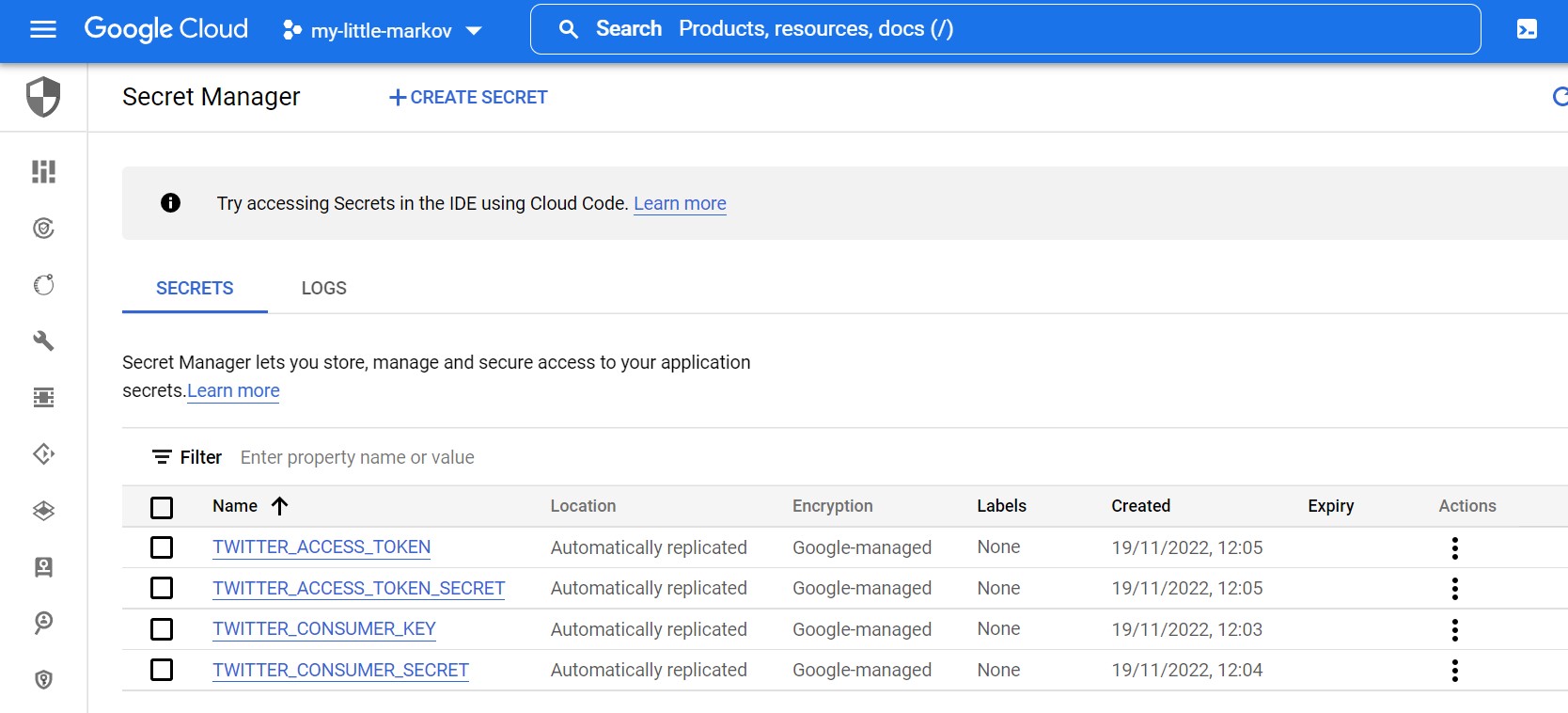

Googles secrets manager is used to expose the Twitter API keys required securely as environment variables.

And FINALLY we use Google Cloud Scheduler to run the container to Tweet every hour from 9AM to 9PM. I found a useful guide on how to write CRON scheduling commands and so here is ours used with the reference above.

# Use the hash sign to prefix a comment
# +---------------- minute (0 - 59)
# |  +------------- hour (0 - 23)
# |  |  +---------- day of month (1 - 31)
# |  |  |  +------- month (1 - 12)
# |  |  |  |  +---- day of week (0 - 7) (Sunday=0 or 7)
# |  |  |  |  |
# *  *  *  *  *  command to be executed
#-------------------------------------------------------------------------
# every day, every hour from 9-9pm
0 9,10,11,12,13,14,15,16,17,18,19,20,21 * * *

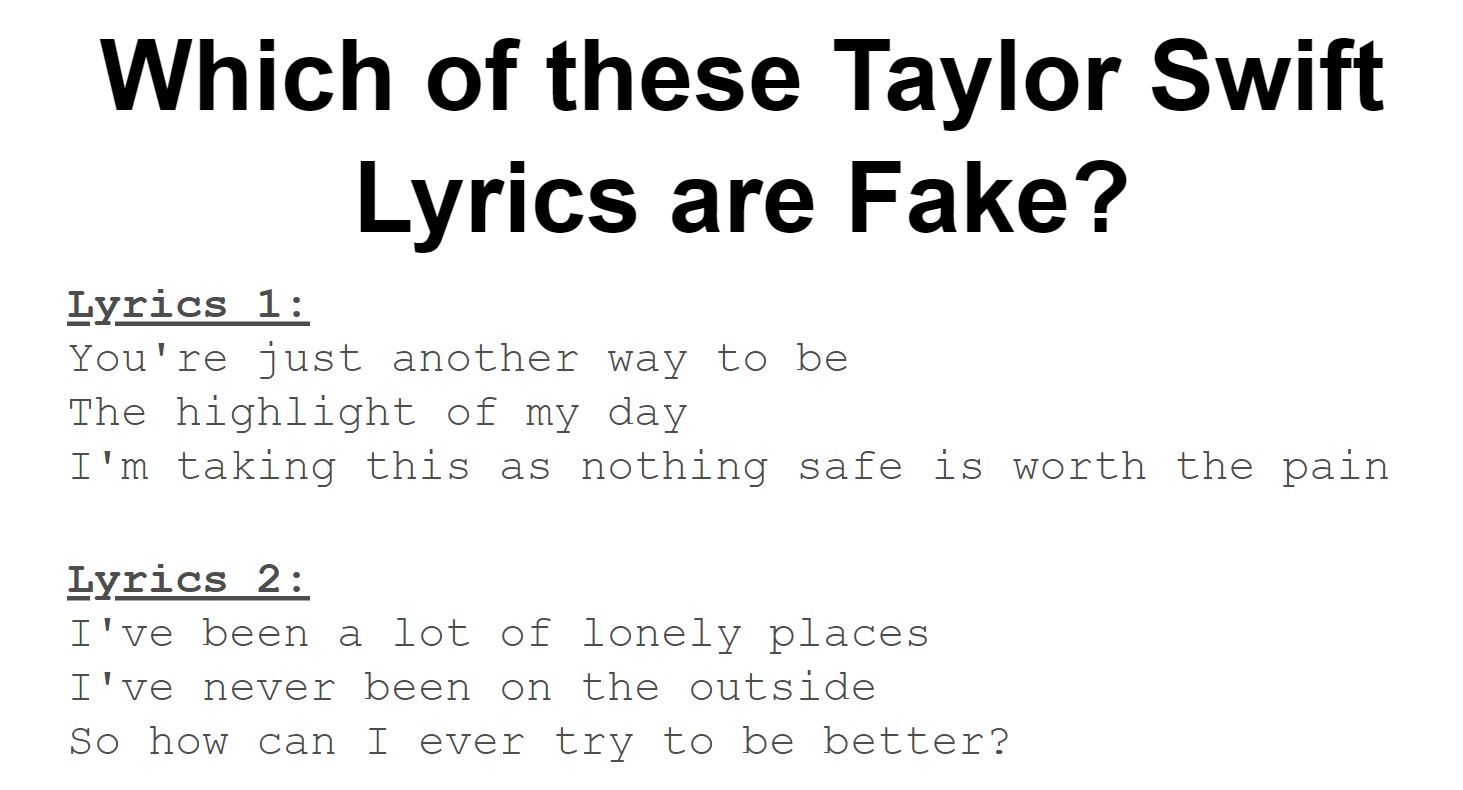

Which Taylor Swift Lyrics Were ACTUALLY Fake?

First of all THANKS if you made it this far. We hope you laughed or at least learnt a little something new.

Please suggest a new text topic to train on and we will get the account Tweeting with it as soon as possible!

And the moment you’ve all been scrolling for: Lyrics 1 were generated by the Markov Model
