Decision Tree Classifiers

Now we know the structure of decision trees, let’s build a decision tree models, specifically a classifier.

We can use the exact same steps we did with our dummy classifier model to build decision tree models with Scikit learn.

from sklearn.tree import DecisionTreeClassifier

model = DecisionTreeClassifier()

new_example

	ml_experience	class_attendance	lab1	lab2	lab3	lab4	quiz1
0	1	0	1	1	0	0	0

model.predict(new_example)

NotFittedError: This DecisionTreeClassifier instance is not fitted yet. Call 'fit' with appropriate arguments before using this estimator.

Detailed traceback:
  File "<string>", line 1, in <module>
  File "/usr/local/lib/python3.12/site-packages/sklearn/tree/_classes.py", line 529, in predict
    check_is_fitted(self)
  File "/usr/local/lib/python3.12/site-packages/sklearn/utils/validation.py", line 1754, in check_is_fitted
    raise NotFittedError(msg % {"name": type(estimator).__name__})

We can use the same steps we used when building a baseline model, to build a decision tree model with scikit-learn.

Recall that scikit-learn uses the term fit for training or learning and uses predict for prediction.

We must import the function from the sklearn.tree library and then we can create a decision tree using the DecisionTreeClassifier() function.

Is our new model ready to predict now that we have made our decision tree model?

Let’s see what happens when we try to predict the quiz2 mark of a new example.

We get an error! We forgot the crucial step of fitting our model.

X_binary.head()

	ml_experience	class_attendance	lab1	lab2	lab3	lab4	quiz1
0	1	1	1	1	0	1	1
1	1	0	1	1	0	0	1
2	0	0	0	0	0	0	0
3	0	1	1	1	1	1	0
4	0	1	0	0	1	1	0

y.head()

0        A+
1    not A+
2    not A+
3        A+
4        A+
Name: quiz2, dtype: object

model.fit(X_binary, y);

We need to make sure that we fit our model before we predict. In the decision tree algorithm, the fitting stage is where the model learns about the data and sets the if-else statements.

Here are the features saved in an object named X_binary and our target labels is y. Now we can fit our model.

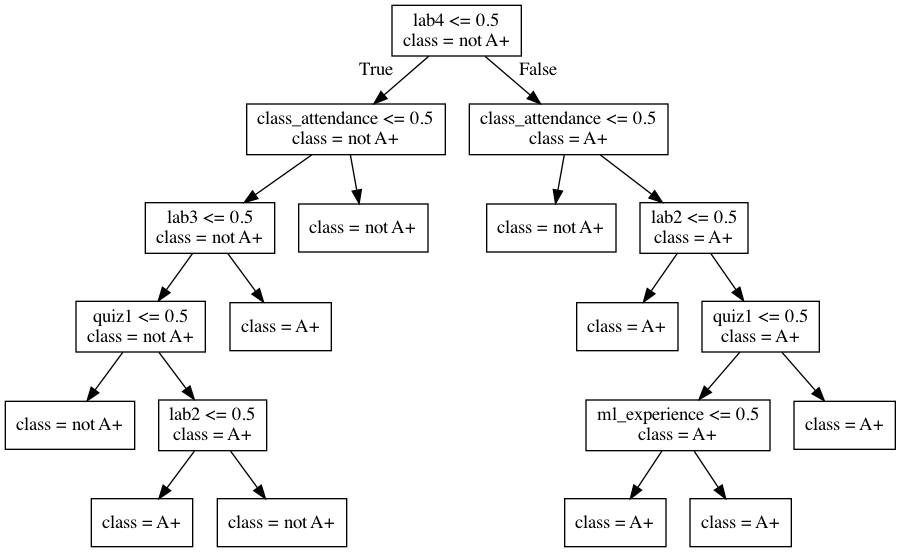

Let’s take a look at what our tree looks like.

We can see all the nodes of the tree and what the root condition is.

In this case, our root condition is whether or not lab4 is greater or equal to 0.5.

Since we are using binary data, if lab4 equals 0 for an example, then it’s going to be going down the left branch and if it equal 1 it will go down the right branch.

new_example

	ml_experience	class_attendance	lab1	lab2	lab3	lab4	quiz1
0	1	0	1	1	0	0	0

Using this tree, and the rules it’s set, let’s try and predict the outcome of the example new_example.

Starting with lab4 we can go down the left branch since it has a value of 0 and the condition is true.class_attendence equals 0 so again we go down the left branch.

lab3 and quiz1 are also both 0 and so we take the left branch at each of these nodes leaving us at a leave with a prediction value of ’Not A+`.

(model.predict(new_example)[0])

'not A+'

model.score(X_binary, y)

0.9047619047619048

We can check how accurate our model is using .score().

This model predicts on data it’s already seen with 90% accuracy.

How does predict work?

observation

	ml_experience	class_attendance	lab1	lab2	lab3	lab4	quiz1
0	1	0	1	1	0	1	1

Let’s try again with a new tree and the animation below.

Let’s start at the top of the tree and ask binary questions at each node and follow the appropriate path in the tree.

Here we go down the right branch from the root of the tree since class_attendence does not equal 1, next we take the left branch at the next node since quiz1==1 is true and that drops us off at the leaf where the model would predict quiz2 to be an A+.

The model only considers the features which are in the learned tree and ignores all other features.

How does fit work

• Which features are most useful for classification?
• Minimize impurity at each question/node
• Common criteria to minimize impurity
  • Gini Index
  • Information gain
  • Cross entropy

We aren’t going to go into this in much detail, but the fitting of a decision tree has a lot to do with important features (which columns contribute the most to the decision-making process) and minimizing the “impurity”.

We don’t need to worry about this for this course.

Let’s apply what we learned!
