Support Vector Machines (SVMs) with RBF Kernel

cities_df = pd.read_csv("data/canada_usa_cities.csv")
train_df, test_df = train_test_split(cities_df, test_size=0.2, random_state=123)
train_df.head()

	longitude	latitude	country
160	-76.4813	44.2307	Canada
127	-81.2496	42.9837	Canada
169	-66.0580	45.2788	Canada
188	-73.2533	45.3057	Canada
187	-67.9245	47.1652	Canada

X_train, y_train = train_df.drop(columns=['country']), train_df['country']
X_test, y_test = test_df.drop(columns=['country']), test_df['country']
X_train.head()

	longitude	latitude
160	-76.4813	44.2307
127	-81.2496	42.9837
169	-66.0580	45.2788
188	-73.2533	45.3057
187	-67.9245	47.1652

Another popular similarity-based algorithm is Support Vector Machines (SVM).

SVMs use a different similarity metric which is called a “kernel” in SVM land.

We are going to concentrate on the specific kernel called Radial Basis Functions (RBFs).

Let’s bring back our trusty cities dataset again.

cities_plot = alt.Chart(train_df).mark_circle(size=20, opacity=0.6).encode(
    alt.X('longitude:Q', scale=alt.Scale(domain=[-140, -40])),
    alt.Y('latitude:Q', scale=alt.Scale(domain=[20, 60])),
    alt.Color('country:N', scale=alt.Scale(domain=['Canada', 'USA'],
                                           range=['red', 'blue'])))
cities_plot

Here is our data plotted once again with the red dots representing Canadian cities and the blue ones represent American cities.

from sklearn.svm import SVC
from sklearn.model_selection import cross_validate

svm = SVC(gamma=0.01)
scores = cross_validate(svm, X_train, y_train, return_train_score=True)
pd.DataFrame(scores)

	fit_time	score_time	test_score	train_score
0	0.002137	0.001423	0.823529	0.842105
1	0.001644	0.001235	0.823529	0.842105
2	0.001591	0.001213	0.727273	0.858209
3	0.001578	0.001210	0.787879	0.843284
4	0.001583	0.001210	0.939394	0.805970

svm_cv_score = scores['test_score'].mean()
svm_cv_score

np.float64(0.8203208556149733)

In this course, we are not going into detail about how support vector machine classifiers or regressor works but more so on how to use it with Scikit-learn.

We must first import the necessary library and then we can get to model building in the same fashion as we did before.

Here we are importing the SVC tool from the sklearn.svm library.

For now, just ignore the gamma input argument in SVC() we will get to that soon.

After building our model and performing cross-validation, we can see that the mean accuracy is 0.820.

cities_df = pd.read_csv("data/canada_usa_cities.csv")
train_df, test_df = train_test_split(cities_df, test_size=0.2, random_state=123)
X_train, y_train = train_df.drop(columns=['country']), train_df['country']
X_test, y_test = test_df.drop(columns=['country']), test_df['country']

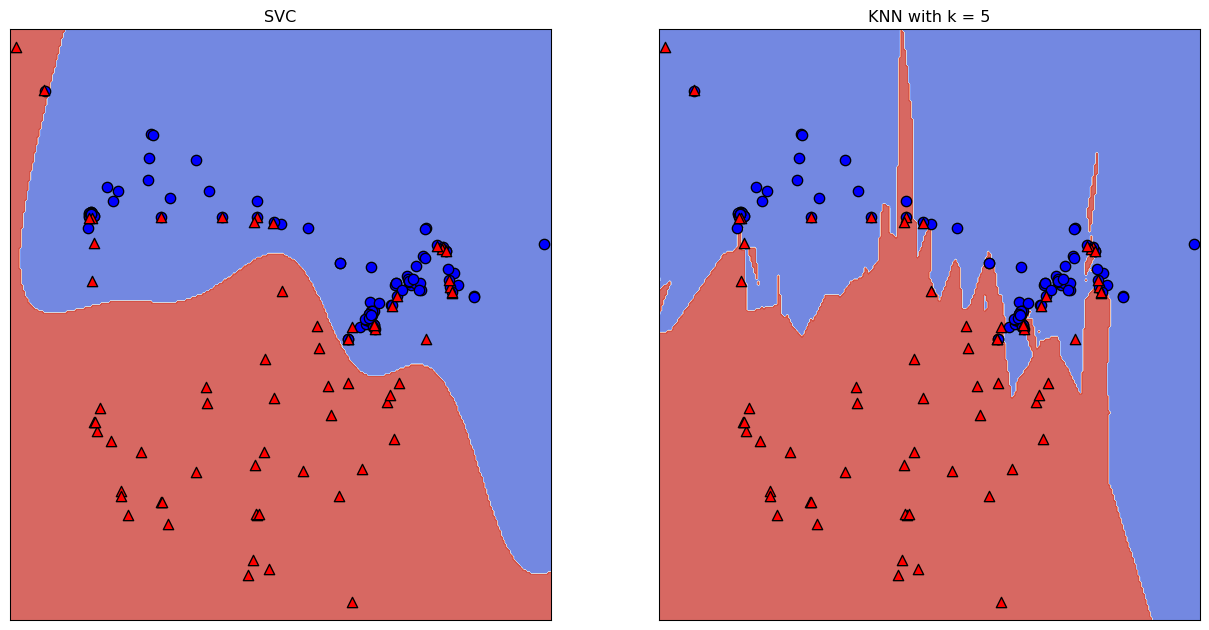

If we plot over the support vector machine classifier along with the 𝑘-Nearest Neighbours classifier, we can see that the support vector machine classifier is a smoothed version of the 𝑘-Nearest Neighbours classifier.

SVMs

knn = KNeighborsClassifier(n_neighbors=5)
scores = cross_validate(knn, X_train, y_train, return_train_score=True)
pd.DataFrame(scores)

	fit_time	score_time	test_score	train_score
0	0.001740	0.002326	0.852941	0.849624
1	0.001257	0.002106	0.764706	0.834586
2	0.001236	0.001877	0.727273	0.850746
3	0.001218	0.001899	0.787879	0.858209
4	0.001212	0.001886	0.878788	0.813433

knn_cv_score = scores['test_score'].mean().round(3)
knn_cv_score

np.float64(0.802)

svm_cv_score.round(3)

np.float64(0.82)

Superficially, support vector machines are very similar to 𝑘-Nearest Neighbours.

A test example is positive if on average it looks more like positive examples it is negative if on average it looks more like negative examples.

The primary difference between 𝑘-NNs and SVMs is that:

• Unlike 𝑘-NNs, SVMs only remember the key examples (support vectors).
• When it comes to predicting a query point, we only consider the key examples from the data, and only calculate the distance to these key examples. This makes it more efficient than 𝑘-NN.

If we compare the scores from the 𝑘-NN model using n_neighbors=5 and the scores from the SVM model we get similar results, however, the SVM model seems to do slightly better than the 𝑘-NN model.

SVM Regressor

from sklearn.svm import SVR

It should come as no surprise that we can use SVM models for regression problems as well.

We need to make sure to import SVR from the SVM sklearn library.

Hyperparameters of SVM are:

• gamma
• C

There are 2 main hyperparameters for support vector machines with an RBF kernel; gamma and C.

We are not going into detail about the interpretation of these hyperparameters but we will observe how they are related to the fundamental trade-off.

If you wish to learn more on these you can reference Scikit-learn`’s explanation of RBF SVM parameters.

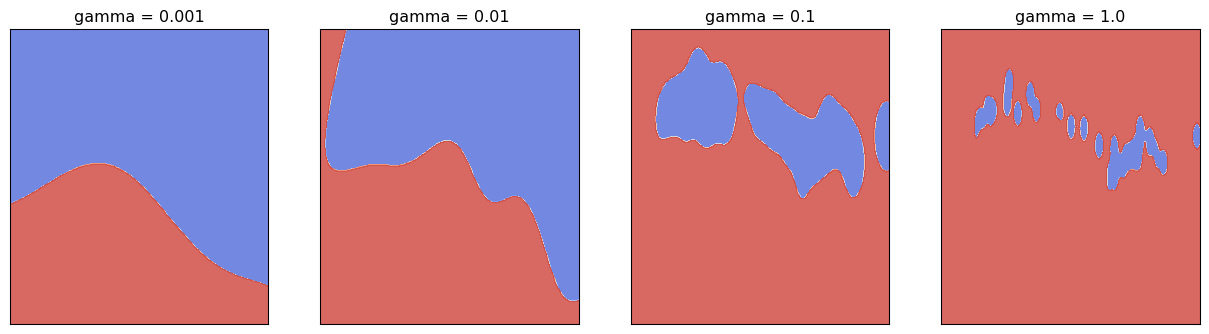

Relation of gamma and the fundamental trade-off

gamma controls the complexity of a model, just like other hyperparameters we’ve seen.

• As gamma ↑, complexity ↑
• As gamma ↓, complexity ↓

The first type of hyperparameter is gamma. gamma controls the complexity of the model.

Using higher values for gamma means a more complex model is produced whereas lower values result in a less complex model.

If we look at the plots, it appears that with lower values of gamma, the model is likely underfitting, and as gamma increases, the potential of overfitting is also increasing.

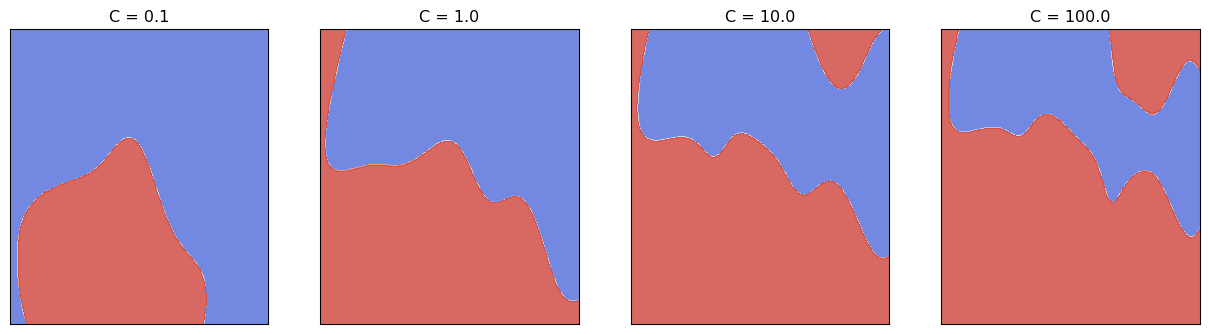

Relation of C and the fundamental trade-off

C also affects the fundamental tradeoff.

• As C ↑, complexity ↑
• As C ↓, complexity ↓

The other hyperparameter we will look at is C. C also controls the fundamental trade-off. Just like with gamma, higher values increase the model complexity whereas lower values decrease the complexity.

Obtaining optimal validation scores requires a hyperparameter search between both gamma and C to balance the fundamental trade-off.

We will learn how to search over multiple hyperparameters at a time in the next module.

Let’s apply what we learned!
