Reshaping with Pivot

Pivot

.pivot() can be used in situations to transform long dataframes into wider ones.
Consider the dataframe below.

How can we convert it?

cereal_long

	name	mfr	nutrition	value
0	Special K	K	calories	110
1	Special K	K	protein	6
2	Apple Jacks	K	calories	110
...	...	...	...	...
7	Cheerios	G	protein	6
8	Wheaties	G	calories	100
9	Wheaties	G	protein	3

10 rows × 4 columns

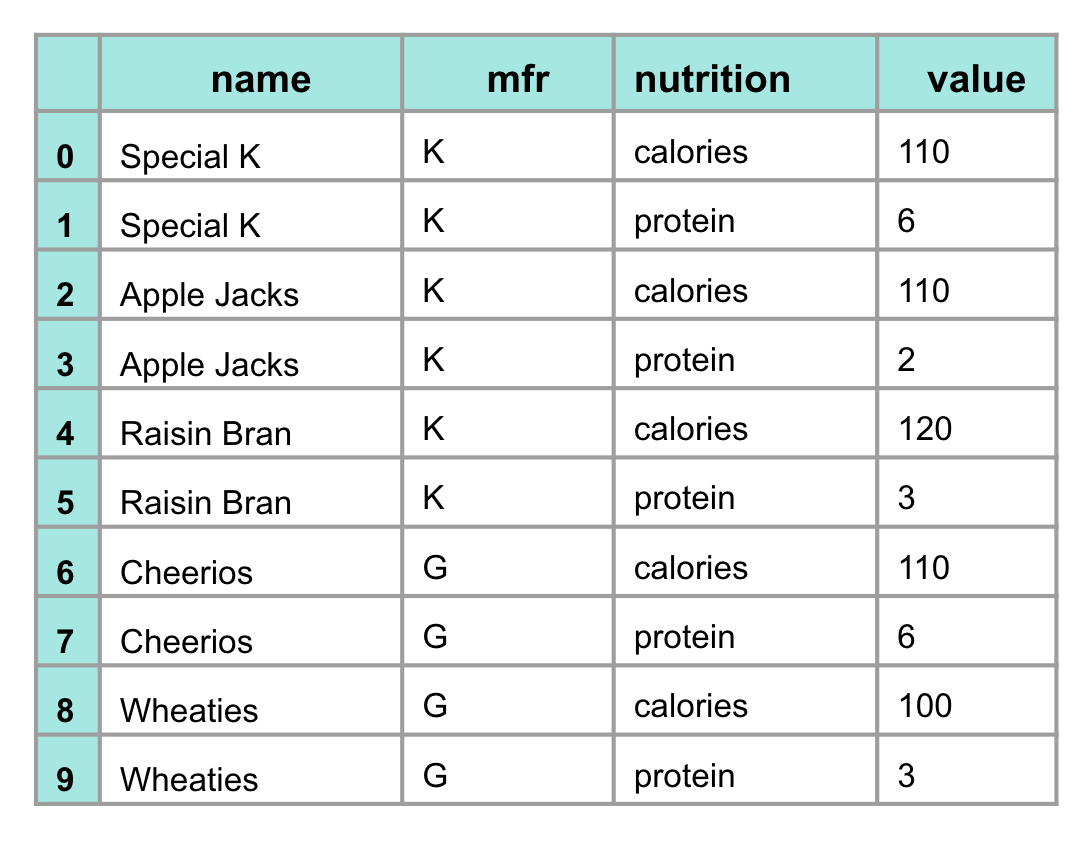

Here is the same dataframe that we saw on the previous slide named cereal_long. We can see there are 10 rows and the nutrition column is made up of 2 variables; calories and protein.

That means there are 2 rows for each of the 5 kinds of cereal. This explains the 10 rows (5 kinds of cereal * 2 variables = 10 rows).

cereal_long.head(5)

	name	mfr	nutrition	value
0	Special K	K	calories	110
1	Special K	K	protein	6
2	Apple Jacks	K	calories	110
3	Apple Jacks	K	protein	2
4	Raisin Bran	K	calories	120

cereal_wide = cereal_long.pivot(index='name', columns='nutrition', values='value')
cereal_wide

nutrition	calories	protein
name
Apple Jacks	110	2
Cheerios	110	6
Raisin Bran	120	3
Special K	110	6
Wheaties	100	3

We use pivot() in the following way to transform it into a wider dataframe.

cereal_long.head(3)

	name	mfr	nutrition	value
0	Special K	K	calories	110
1	Special K	K	protein	6
2	Apple Jacks	K	calories	110

cereal_wide = cereal_long.pivot(index='name', columns='nutrition', values='value')
cereal_wide

nutrition	calories	protein
name
Apple Jacks	110	2
Cheerios	110	6
Raisin Bran	120	3
Special K	110	6
Wheaties	100	3

.pivot() takes 3 arguments:

• index: Used to make the new dataframe’s index.
• columns: The column that currently exists but that we want to create new columns labels from. Each unique value in this column will become a new column label.
• values: The name of the column that currently exists but that contains the cell values we want to relocate to new columns. These values will be displayed in the respective newly created columns.

Let’s take a closer look at the code.

cereal_long

	name	mfr	nutrition	value
0	Special K	K	calories	110
1	Special K	K	protein	6
2	Apple Jacks	K	calories	110
...	...	...	...	...
7	Cheerios	G	protein	6
8	Wheaties	G	calories	100
9	Wheaties	G	protein	3

10 rows × 4 columns

cereal_wide

nutrition	calories	protein
name
Apple Jacks	110	2
Cheerios	110	6
Raisin Bran	120	3
Special K	110	6
Wheaties	100	3

Can you see the difference?

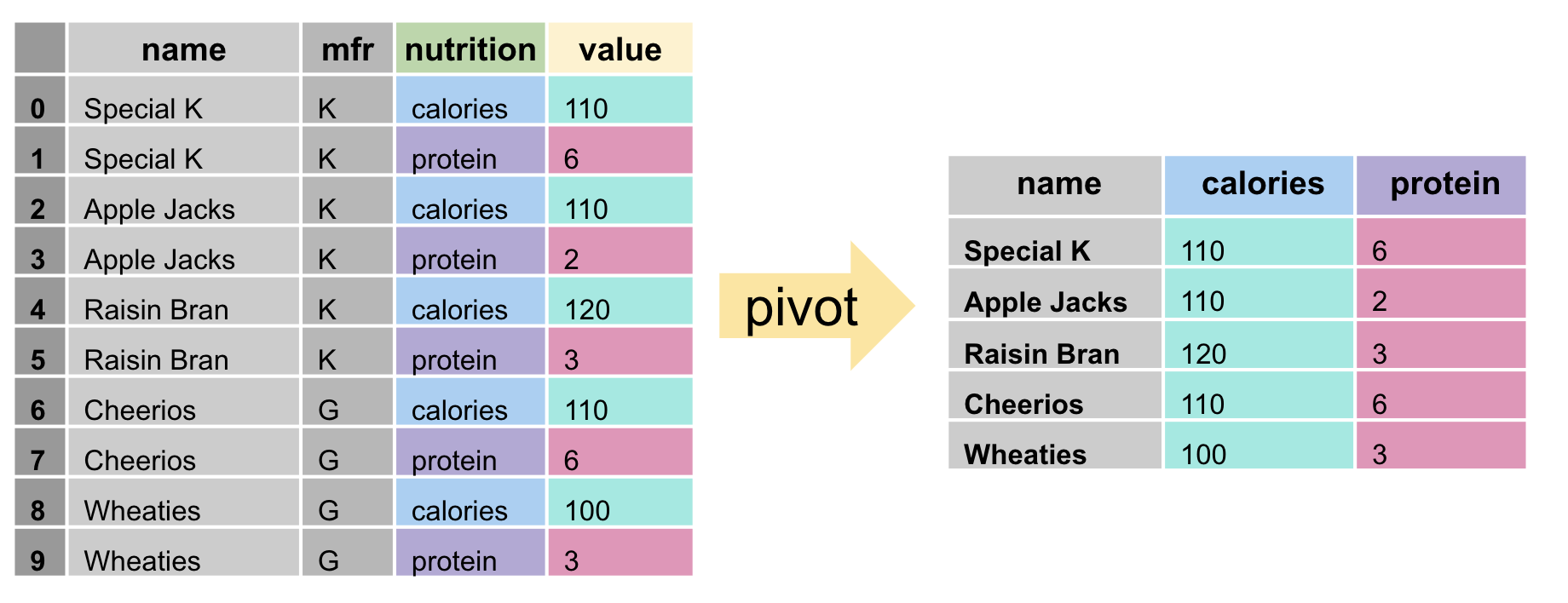

The following diagram explains what is happening in the transformation.

cereal_wide = cereal_long.pivot(index='name', columns='nutrition', values='value')

Here are a few important things to notice:

• Our index is reassigned to the name column which we assigned to the index argument. This also acts as the identifier for which rows in the original dataframe get compiled to a single one in the new dataframe.

• The unique values in the nutrition column depict what will be the new columns after the transformation. We assigned this in the columns argument.

• The values in the value column are transformed into the values in the newly created protein and calories columns. This was defined in the values argument of the code.
• We lost the mfr column!

Resetting the Index

cereal_wide.head(5)

nutrition	calories	protein
name
Apple Jacks	110	2
Cheerios	110	6
Raisin Bran	120	3
Special K	110	6
Wheaties	100	3

cereal_wide_messy = cereal_wide.reset_index()
cereal_wide_messy.head(5)

nutrition	name	calories	protein
0	Apple Jacks	110	2
1	Cheerios	110	6
2	Raisin Bran	120	3
3	Special K	110	6
4	Wheaties	100	3

Let’s take a brief detour and discuss resetting the index. Here is our dataframe cereal_wide.

While pivoting we transformed the name column as our index.

We can transform the name index back into a regular column by using the same reset_index() verb we learned when plotting grouped dataframes in module 2:

cereal_wide_messy.head()

nutrition	name	calories	protein
0	Apple Jacks	110	2
1	Cheerios	110	6
2	Raisin Bran	120	3
3	Special K	110	6
4	Wheaties	100	3

cereal_wide_cleaned = cereal_wide_messy.rename_axis('', axis='columns')
cereal_wide_cleaned.head()

	name	calories	protein
0	Apple Jacks	110	2
1	Cheerios	110	6
2	Raisin Bran	120	3
3	Special K	110	6
4	Wheaties	100	3

If we want to remove the nutrition label that is in the top left of the dataframe, we can rename the “axis” using .rename_axis(). We simply add in quotations what we want to rename the index label as the first argument (we are going to rename it to something blank hence empty quotations) and specify that in the axis argument that we are renaming the “columns” index.

That looks all cleaned up!

Let’s apply what we learned!
