Reshaping with Pivot Table

Pivot Table

We discussed that one of the effects of using .pivot() on our cereal_long dataframe was that the new dataframe was missing the column mfr.

That’s because .pivot() discards any columns that are not being directly affected by the pivot. Only the column that is specified in the index argument and the columns that need to be transformed are present in the new dataframe.

That’s where pivot_table steps in!

.pivot_table() has the same arguments as .pivot() but the biggest difference is that it allows us to include multiple columns under the index argument. That just means we can keep any of the columns that are not directly affected by the pivot.

Let’s try to convert our dataframe again but this time keeping the mfr column with .pivot_table().

cereal_long

	name	mfr	nutrition	value
0	Special K	K	calories	110
1	Special K	K	protein	6
2	Apple Jacks	K	calories	110
...	...	...	...	...
7	Cheerios	G	protein	6
8	Wheaties	G	calories	100
9	Wheaties	G	protein	3

10 rows × 4 columns

cereal_wider = cereal_long.pivot_table(index=['name', 'mfr'], columns='nutrition', values='value')
cereal_wider

	nutrition	calories	protein
name	mfr
Apple Jacks	K	110.0	2.0
Cheerios	G	110.0	6.0
Raisin Bran	K	120.0	3.0
Special K	K	110.0	6.0
Wheaties	G	100.0	3.0

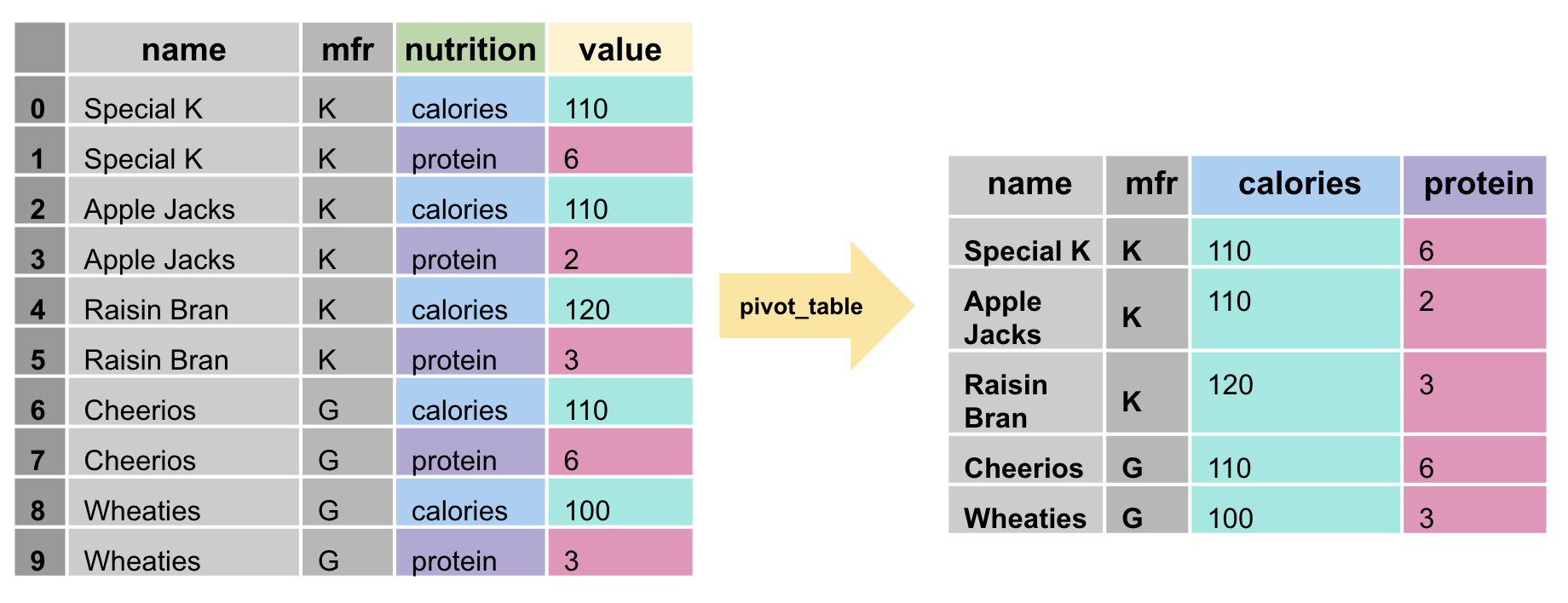

Here is our long dataframe.

We include any columns that we wish to keep under the index argument contained in square brackets.

We can see here, that our transformed dataframe now has the mfr column as well as the new calories and protein column.

We still don’t have our index of containing integers though so we will have to do something about that.

cereal_wider = cereal_long.pivot_table(index=['name','mfr'], columns='nutrition', values='value')
cereal_wider

	nutrition	calories	protein
name	mfr
Apple Jacks	K	110.0	2.0
Cheerios	G	110.0	6.0
Raisin Bran	K	120.0	3.0
Special K	K	110.0	6.0
Wheaties	G	100.0	3.0

cereal_wider.reset_index().rename_axis('', axis='columns')

	name	mfr	calories	protein
0	Apple Jacks	K	110.0	2.0
1	Cheerios	G	110.0	6.0
2	Raisin Bran	K	120.0	3.0
3	Special K	K	110.0	6.0
4	Wheaties	G	100.0	3.0

And just like before, if we want to return to our original dataframe with a column of numbers for our index, we use .reset_index() and rename_axis() to clean up the index label.

Here we can see the same thing happened as before with .pivot() but now we’ve kept the mfr column.

Why use pivot at all then?

When we use .pivot_table(), we have to proceed with caution.

We talked about how .pivot() and .pivot_table() take the arguments index and columns. What happens if we have multiple rows with the same index and column values?

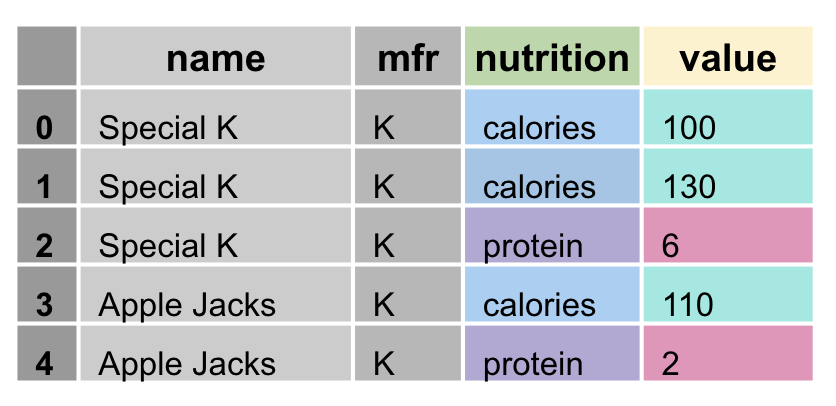

Take the following example where we see that Special K has 2 rows with differing values for calories.

What happens when we try to pivot this?

cereal_problem

	name	mfr	nutrition	value
0	Special K	K	calories	100
1	Special K	K	calories	130
2	Special K	K	protein	6
3	Apple Jacks	K	calories	110
4	Apple Jacks	K	protein	2

cereal_problem.pivot(index='name', columns='nutrition', values='value')

ValueError: Index contains duplicate entries, cannot reshape

Detailed traceback:
  File "<string>", line 1, in <module>
  File "/usr/local/lib/python3.7/site-packages/pandas/core/frame.py", line 5923, in pivot
    return pivot(self, index=index, columns=columns, values=values)
  File "/usr/local/lib/python3.7/site-packages/pandas/core/reshape/pivot.py", line 450, in pivot
    return indexed.unstack(columns)
  File "/usr/local/lib/python3.7/site-packages/pandas/core/series.py", line 3550, in unstack
    return unstack(self, level, fill_value)
  File "/usr/local/lib/python3.7/site-packages/pandas/core/reshape/reshape.py", line 179, in _make_selectors
    raise ValueError("Index contains duplicate entries, cannot reshape")

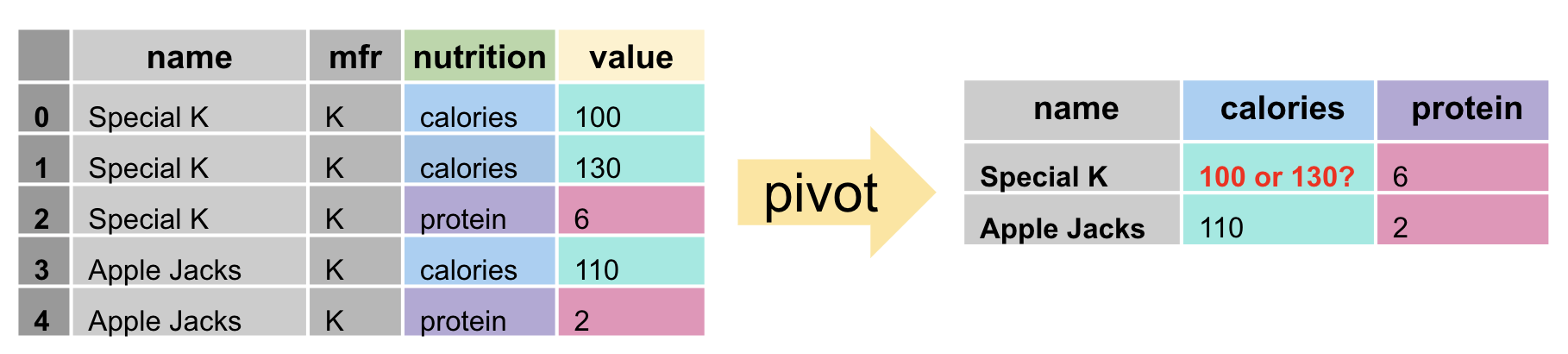

Here is our dataframe, and here is what happens when we use the same arguments as before.

.pivot() throws an error message.

Attribution: Nikolay Grozev, Reshaping in Pandas - Pivot, Pivot-Table, Stack, and Unstack explained with Pictures

This is a useful error message, letting us know that there are “duplicate entries, cannot reshape” which means there are non-unique rows. We will need to do something before going any further.

cereal_problem.pivot_table(index=['name', 'mfr'], columns='nutrition', values='value')

	nutrition	calories	protein
name	mfr
Apple Jacks	K	110.0	2.0
Special K	K	115.0	6.0

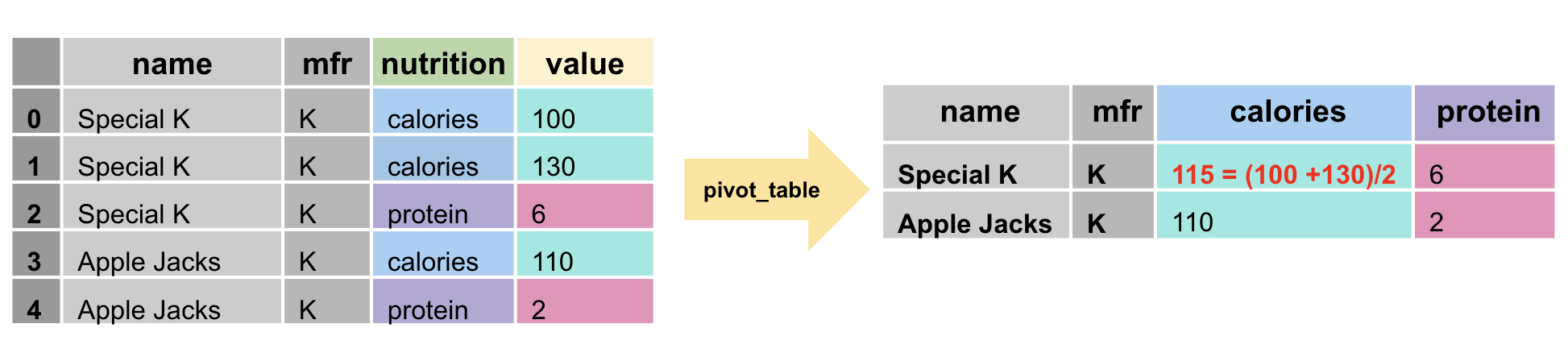

Let’s see what happens when we use .pivot_table().

Ok, that’s odd. We don’t get an error this time but instead get a calories value of 115 which is neither of the original values of 130 or 100.

.pivot_table() instead by default takes the average of the duplicated columns and continues to execute.

cereal_problem.duplicated(subset=['name', 'nutrition'], keep=False)

0     True
1     True
2    False
3    False
4    False
dtype: bool

cereal_problem.duplicated(subset=['name', 'nutrition'])

0    False
1     True
2    False
3    False
4    False
dtype: bool

When we use .pivot_table(), we recommend checking if there are duplicate values in columns we use in the index and columns arguments before we proceed.

We can do this with the .duplicated() verb. We put the columns we specified in the index and columns arguments in a subset argument, in this case, the columns name and nutrition. We set the argument keep to False to make sure all the rows are identified and not just the repeated ones.

Here we can see now that index 0 and 1 are both duplicates by the True values.

Without the keep argument, only the index labeled 1 will be identified as a duplicate.

cereal_problem.duplicated(subset=['name', 'nutrition'], keep=False)

0     True
1     True
2    False
3    False
4    False
dtype: bool

duplicate_info =cereal_problem.duplicated(subset=['name', 'nutrition'], keep=False)
cereal_problem[duplicate_info]

	name	mfr	nutrition	value
0	Special K	K	calories	100
1	Special K	K	calories	130

We can obtain the duplicated rows by filtering them from the original dataframe cereal_problem.

How we see our 2 rows with calorie values of 100 and 130.

cereal_problem

	name	mfr	nutrition	value
0	Special K	K	calories	100
1	Special K	K	calories	130
2	Special K	K	protein	6
3	Apple Jacks	K	calories	110
4	Apple Jacks	K	protein	2

cereal_no_problem = cereal_problem.drop(axis=0, index=1)
cereal_no_problem

	name	mfr	nutrition	value
0	Special K	K	calories	100
2	Special K	K	protein	6
3	Apple Jacks	K	calories	110
4	Apple Jacks	K	protein	2

Once we have decided which row we want to keep, we can use .drop() that we learned in the previous Module to remove it from our original dataframe.

For this example, we are going to drop the row at index 1, which has a calorie value of 130.

We use the argument axis=0, which refers to the rows in the dataframe and index, which specifies the row index that we want to drop.

This just means we are “dropping a row with index 1”.

Let’s apply what we learned!
