Concatenation

There are 2 different verbs we will use for joining dataframes together:

• pd.concat()

• .merge()

Up until this moment, we have been working with a single dataframe.

Many organizations split their data into multiple tables and join them together, depending on what columns they need for their analysis.

There are 2 different verbs we will use for joining dataframes together:

• pd.concat(); A forceful way of joining dataframes across rows or columns. A useful analogy is the gluing or taping of 2 pieces of paper together so the shapes match up.

• .merge() A more precision based approach for combining data on common columns or indices. This can be compared to stitching fabric together so that the pattern/print lines up.

Concatenation

Concatenation works extremely well when you have similar dataframes, which both share identical column or row index labels.

pd.concat() can glue the 2 dataframes together either horizontally or vertically.

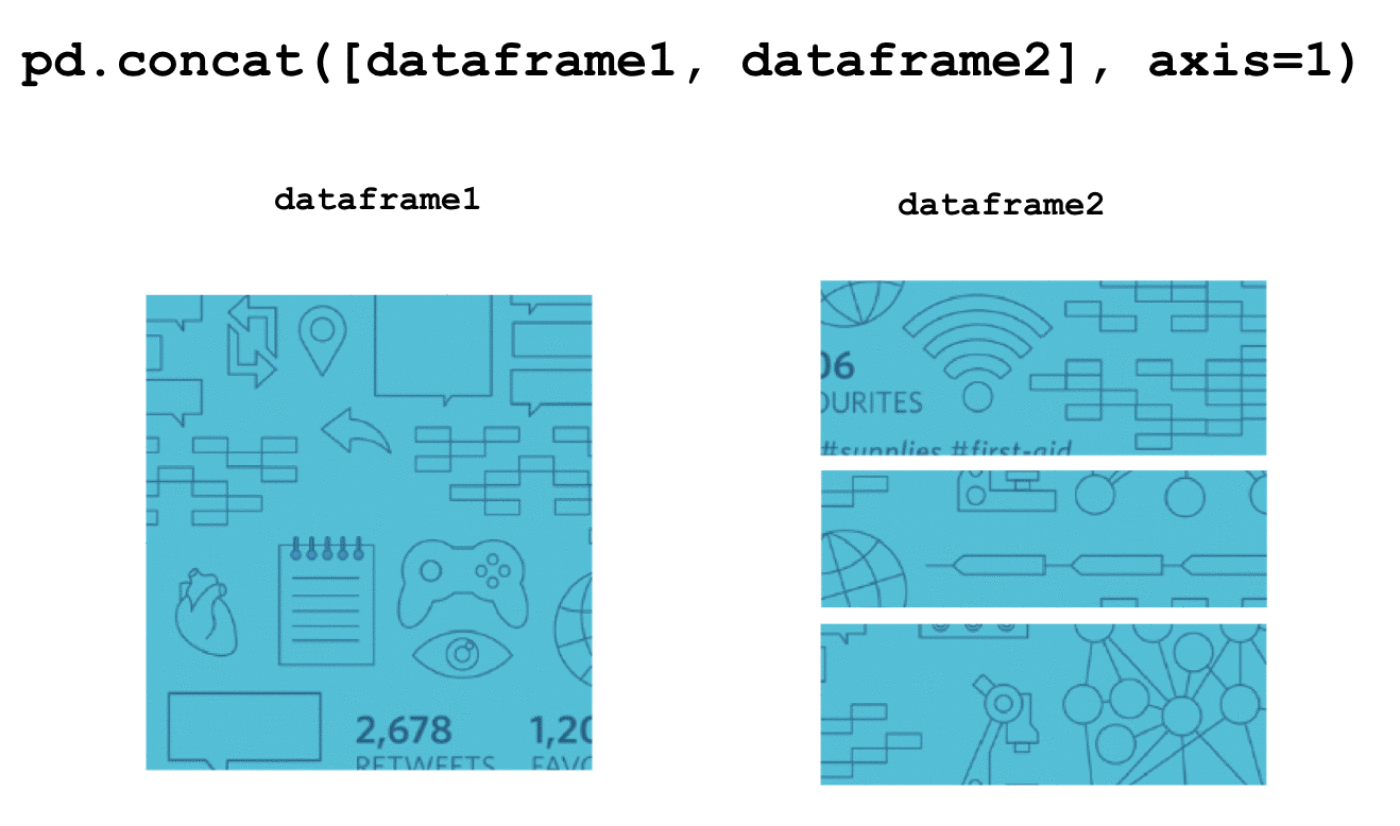

In this animation, you can see that the pieces are joined in the order that was presented, and the pattern does not necessarily match up.

candy = pd.read_csv('data/candybars.csv').loc[:4, 'name': 'peanuts']
candy

	name	weight	chocolate	peanuts
0	Coffee Crisp	50	1	0
1	Butterfinger	184	1	1
2	Skor	39	1	0
3	Smarties	45	1	0
4	Twix	58	1	0

For the next couple of examples, we are going to look at concatenating a subset of our original candy bars dataframe.

This dataframe has 5 rows and 4 columns.

Horizontal Concatenation

candy

	name	weight	chocolate	peanuts
0	Coffee Crisp	50	1	0
1	Butterfinger	184	1	1
2	Skor	39	1	0
3	Smarties	45	1	0
4	Twix	58	1	0

candy2 = pd.read_csv('data/candy_bars2.csv')
candy2

	name	calories	fat	sugar
0	Coffee Crisp	260	13	25
1	Butterfinger	798	30	72
2	Skor	209	12	23
3	Smarties	210	6	33
4	Twix	250	12	25

candy_bars2.csv is a new dataframe that has additional nutritional information about each candy bar like the columns calories fat and sugar. You’ll notice that this dataframe has the same number and order of candy bars.

We want to combine candy2 with candy horizontally.

candy_nutrition = pd.concat([candy, candy2], axis=1)
candy_nutrition

	name	weight	chocolate	peanuts	name	calories	fat	sugar
0	Coffee Crisp	50	1	0	Coffee Crisp	260	13	25
1	Butterfinger	184	1	1	Butterfinger	798	30	72
2	Skor	39	1	0	Skor	209	12	23
3	Smarties	45	1	0	Smarties	210	6	33
4	Twix	58	1	0	Twix	250	12	25

This results in the same 4 rows but now we have 8 columns.

We can combine these two dataframes using pd.concat(), but we need to clarify on which axis to combine.

We use square brackets around the dataframes we wish to glue together. In the context of dataframes, it’s normal to refer to axis=1 as the columns of the dataframe and axis=0 as the rows.

Since we are performing a horizontal concatenation, we need to use the argument axis=1 to glue them along the column axis.

candy_nutrition

	name	weight	chocolate	peanuts	name	calories	fat	sugar
0	Coffee Crisp	50	1	0	Coffee Crisp	260	13	25
1	Butterfinger	184	1	1	Butterfinger	798	30	72
2	Skor	39	1	0	Skor	209	12	23
3	Smarties	45	1	0	Smarties	210	6	33
4	Twix	58	1	0	Twix	250	12	25

candy_nutrition.loc[:,~candy_nutrition.columns.duplicated()]

	name	weight	chocolate	peanuts	calories	fat	sugar
0	Coffee Crisp	50	1	0	260	13	25
1	Butterfinger	184	1	1	798	30	72
2	Skor	39	1	0	209	12	23
3	Smarties	45	1	0	210	6	33
4	Twix	58	1	0	250	12	25

After inspection, we can see that there are 2 name columns, which isn’t necessary.

Is there a convenient way to remove duplicated columns? Fortunately there is!

We can remove any duplicate columns by using both .duplicated(), .loc[] and the Tilde operator we discussed in Module 2.

This removed one of the name columns. But let’s inspect this code a bit more carefully.

candy_nutrition.columns.duplicated()

array([False, False, False, False,  True, False, False, False])

~candy_nutrition.columns.duplicated()

array([ True,  True,  True,  True, False,  True,  True,  True])

.columns.duplicated() shows us whether a column is duplicated by assigning the column position with either a True or False value.

Since we need to instead keep all False columns and not the True values, we can easily use the Tilde operator to convert all the False values to True and vice-versa.

candy_nutrition_cleaned = candy_nutrition.loc[:,~candy_nutrition.columns.duplicated()]
candy_nutrition_cleaned

	name	weight	chocolate	peanuts	calories	fat	sugar
0	Coffee Crisp	50	1	0	260	13	25
1	Butterfinger	184	1	1	798	30	72
2	Skor	39	1	0	209	12	23
3	Smarties	45	1	0	210	6	33
4	Twix	58	1	0	250	12	25

When we combine this with .loc[] to select which columns to display, Python will only select columns that were not identified as duplicates.

Vertical Concatenation

candy

	name	weight	chocolate	peanuts
0	Coffee Crisp	50	1	0
1	Butterfinger	184	1	1
2	Skor	39	1	0
3	Smarties	45	1	0
4	Twix	58	1	0

candy_more = pd.read_csv('data/candybars_more.csv', usecols=range(4))
candy_more

	name	weight	chocolate	peanuts
0	Kinder Bueno	43	1	0
1	5th Avenue	56	1	1
2	Crunch	44	1	0

The new dataset candybars_more.csv has 3 additional candy bars that we wish to add to the original candy dataframe. The columns in this dataframe have the same order as in the candy dataframe.

large_candybars = pd.concat([candy, candy_more], axis=0)
large_candybars

	name	weight	chocolate	peanuts
0	Coffee Crisp	50	1	0
1	Butterfinger	184	1	1
2	Skor	39	1	0
...	...	...	...	...
0	Kinder Bueno	43	1	0
1	5th Avenue	56	1	1
2	Crunch	44	1	0

8 rows × 4 columns

When we want to vertically combine dataframes (add rows), we use the argument axis=0 with pd.concat().

After combining them, there are now 8 rows and the same 4 columns. But wait! The index column has non-unique values.

large_candybars

	name	weight	chocolate	peanuts
0	Coffee Crisp	50	1	0
1	Butterfinger	184	1	1
2	Skor	39	1	0
...	...	...	...	...
0	Kinder Bueno	43	1	0
1	5th Avenue	56	1	1
2	Crunch	44	1	0

8 rows × 4 columns

large_candybars_cleaned = large_candybars.reset_index(drop=True)
large_candybars_cleaned

	name	weight	chocolate	peanuts
0	Coffee Crisp	50	1	0
1	Butterfinger	184	1	1
2	Skor	39	1	0
...	...	...	...	...
5	Kinder Bueno	43	1	0
6	5th Avenue	56	1	1
7	Crunch	44	1	0

8 rows × 4 columns

We can reset the index with reset_index() and the argument drop=True to remove the original index:

Be careful of order!

candy

	name	weight	chocolate	peanuts
0	Coffee Crisp	50	1	0
1	Butterfinger	184	1	1
2	Skor	39	1	0
3	Smarties	45	1	0
4	Twix	58	1	0

snacksize_candybars = pd.read_csv('data/snacksize_candybars.csv')
snacksize_candybars

	name	calories	fat	sugar
0	Butterfinger	798	30	72
1	Skor	209	12	23
2	Twix	250	12	25
3	Coffee Crisp	260	13	25
4	Smarties	210	6	33

pd.concat() is great when our dataframes have the same order for each observation. What happens if our dataframes have different orders for the candy bars?

Let’s use a horizontal concatenation example with the dataframesnacksize_candybars.csv. This data contains the candy bars from candy in a shuffled order.

pd.concat([candy, snacksize_candybars], axis=1)

	name	weight	chocolate	peanuts	name	calories	fat	sugar
0	Coffee Crisp	50	1	0	Butterfinger	798	30	72
1	Butterfinger	184	1	1	Skor	209	12	23
2	Skor	39	1	0	Twix	250	12	25
3	Smarties	45	1	0	Coffee Crisp	260	13	25
4	Twix	58	1	0	Smarties	210	6	33

What happens when we concatenate candy and snacksize_candybars now that it has shuffled mix-matched rows?

Oh no. This does not look good. You can see that the 2 name columns have different values in each row, which means this concatenation would produce incorrect results!

Remember…

The biggest takeaway remark with concatenation is that it works well when we are trying to glue two dataframes together horizontally or vertically where the rows and columns are in the same order.

If your dataframes don’t have the same row values, your data will be displayed incorrectly, and therefore, your results will also have no meaning.

Let’s apply what we learned!
