8. Figure formats, interactivity and paired comparisons#
Lecture learning goals
By the end of the lecture you will be able to:
Telling a story with data
Save figures outside the notebook
Visualize pair-wise differences using a slope plot
Creat interactive ggplots charts via plotly (not on the quiz)
Create widget-based interactivity (not on the quiz)
Explain figure formats in the notebook (not on the quiz)
Required activities
After class:
Review the lecture notes.
Watch this 15 min video on paired comparisons
Section 29 on how to tell a story with data. It is really important to read this chapter, it has some great details on how to tell a story with several examples.
Lecture slides
8.1. Saving figures#
8.1.1. Py#
In addition to exporting an entire notebook, how can we save individual figures via Altair and ggplot?
Saving as HTML ensures that any interactive features are still present in the saved file.
import altair as alt
from vega_datasets import data
cars = data.cars()
mpg_weight = alt.Chart(cars).mark_circle().encode(
x='Weight_in_lbs',
y='Miles_per_Gallon',
color='Origin',
tooltip=['Name', 'Origin', 'Horsepower', 'Miles_per_Gallon']
)
mpg_weight
mpg_weight.save('mpg_weight.html')
This means we could send this HTML file to anyone (e.g. as an email attachment)
and they could open it on their computer and still have the interactive elements loaded in the browser,
since they don’t require a Python server running.
You could also upload this file to a static web page generator such as GitHub pages
and have it served online
(rename the chart index.html if you want it to be displayed as the landing page on GitHub pages),
e.g. as I have done here joelostblom/altair-demos
(live at https://joelostblom.github.io/altair-demos/).
It is also possible to save as non-interactive formats such as png (raster) and svg (vector). Internally this relies on another packages called vl-convert, which we have installed in the 531 environment.
mpg_weight.save('mpg_weight.png')
The resolution/size of the saved image can be controlled via the scale_factor parameter.
mpg_weight.save('mpg_weight-hires.png', scale_factor=3)
You might have noticed that Altair charts do not show up on GitHub when you e.g. review a PR. This is the same for all interactive charting libraries and it is because GitHub does not load interactive features, and only displays static images. Altair can include a static image as a fallback for each chart you make, so that you still have the interactive chart in your JupyterLab or VS code, but in environments that can’t display these (such as GitHub) and image will be used instead.
# Run the following line to enable the backup image that will make charts appear on GitHub as well
# alt.renderers.enable('mimetype')
8.1.2. R#
# Load the R cell magic
%load_ext rpy2.ipython
Error importing in API mode: ImportError("dlopen(/Users/andytai/miniforge3/envs/531/lib/python3.11/site-packages/_rinterface_cffi_api.abi3.so, 0x0002): Library not loaded: /Library/Frameworks/R.framework/Versions/4.5-arm64/Resources/lib/libRblas.dylib\n Referenced from: <20FB70DB-7E84-3375-A520-E0350E06C060> /Users/andytai/miniforge3/envs/531/lib/python3.11/site-packages/_rinterface_cffi_api.abi3.so\n Reason: tried: '/Library/Frameworks/R.framework/Versions/4.5-arm64/Resources/lib/libRblas.dylib' (no such file), '/System/Volumes/Preboot/Cryptexes/OS/Library/Frameworks/R.framework/Versions/4.5-arm64/Resources/lib/libRblas.dylib' (no such file), '/Library/Frameworks/R.framework/Versions/4.5-arm64/Resources/lib/libRblas.dylib' (no such file)")
Trying to import in ABI mode.
%%R -i cars
library(tidyverse)

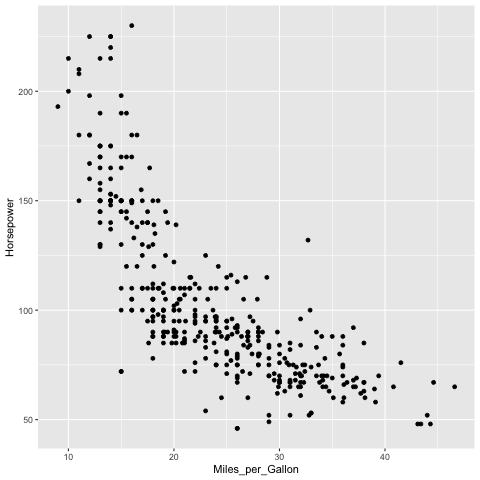

mpg_weight <- ggplot(cars) +
aes(Miles_per_Gallon, Horsepower) +
geom_point()
mpg_weight
── Attaching core tidyverse packages ──────────────────────── tidyverse 2.0.0 ──
✔ dplyr 1.1.4 ✔ readr 2.1.5
✔ forcats 1.0.0 ✔ stringr 1.5.1
✔ ggplot2 3.5.2 ✔ tibble 3.3.0
✔ lubridate 1.9.4 ✔ tidyr 1.3.1
✔ purrr 1.1.0
── Conflicts ────────────────────────────────────────── tidyverse_conflicts() ──
✖ dplyr::filter() masks stats::filter()
✖ dplyr::lag() masks stats::lag()
ℹ Use the conflicted package (<http://conflicted.r-lib.org/>) to force all conflicts to become errors
R callback write-console: In addition:
R callback write-console: Warning message:
R callback write-console: Removed 14 rows containing missing values or values outside the scale range
(`geom_point()`).
The ggsave functions saves the most recent plot to a file.
%%R
ggsave('mpg_weight-r.png')
Saving 6.67 x 6.67 in image
In addition: Warning message:
Removed 14 rows containing missing values or values outside the scale range
(`geom_point()`).
You can also specify which figure to save.
%%R
ggsave('mpg_weight-r.png', mpg_weight)
Saving 6.67 x 6.67 in image
In addition: Warning message:
Removed 14 rows containing missing values or values outside the scale range
(`geom_point()`).
Setting the dpi controls the resolution of the saved figure.
%%R
ggsave('mpg_weight-hires-r.png', dpi=96)
Saving 6.67 x 6.67 in image
In addition: Warning message:
Removed 14 rows containing missing values or values outside the scale range
(`geom_point()`).
You can save to PDF and SVG as well.
Note that saving to svg requires the svglite package.
%%R
ggsave('mpg_weight-r.pdf', mpg_weight)
Saving 6.67 x 6.67 in image
In addition: Warning message:
Removed 14 rows containing missing values or values outside the scale range
(`geom_point()`).
8.2. Pairwise comparisons#
8.2.1. R#
Let’s start by looking at your results from the world health quiz we did in lab 1! Below, I read in the data and assign a label for whether each student had a positive or negative outlook of their own results compared to their estimation of the class average.
%%R -o scores_this_year
library(tidyverse)
theme_set(theme_grey(base_size=18))
scores_raw <- read_csv('data/students-gapminder.csv')
colnames(scores_raw) <- c('time', 'student_score', 'estimated_class_mean')
scores_this_year <- scores_raw |>
mutate(
diff = student_score - estimated_class_mean,
self_belief = case_when(
diff == 0 ~ 'neutral',
diff < 0 ~ 'negative',
diff > 0 ~ 'positive'
),
year = time |> lubridate::parse_date_time(order='mdY HMS') |> lubridate::year()
) |>
# Only keep the scores from October which is when we run the survey in MDS. I think the other scores are from DSCI 320 in Jan
filter((time |> lubridate::parse_date_time(order='mdY HMS') |> lubridate::month()) == 10) |>
filter(year == 2024) |>
pivot_longer(
!c(time, year, self_belief, diff), # time is kept as a student ID
values_to = 'score',
names_to = 'score_type'
) |>
mutate(score_type = factor(score_type, levels = c('student_score', 'estimated_class_mean'))) |>
arrange(desc(diff))
scores_this_year
Rows: 315 Columns: 3
── Column specification ────────────────────────────────────────────────────────
Delimiter: ","
chr (1): Timestamp
dbl (2): Please enter how many questions you answered correctly on the test ...
ℹ Use `spec()` to retrieve the full column specification for this data.
ℹ Specify the column types or set `show_col_types = FALSE` to quiet this message.
# A tibble: 92 × 6
time diff self_belief year score_type score
<chr> <dbl> <chr> <dbl> <fct> <dbl>
1 10/12/2024 0:04:22 5 positive 2024 student_score 15
2 10/12/2024 0:04:22 5 positive 2024 estimated_class_mean 10
3 10/8/2024 20:19:17 3 positive 2024 student_score 9
4 10/8/2024 20:19:17 3 positive 2024 estimated_class_mean 6
5 10/7/2024 14:28:51 2 positive 2024 student_score 7
6 10/7/2024 14:28:51 2 positive 2024 estimated_class_mean 5
7 10/7/2024 14:37:58 2 positive 2024 student_score 6
8 10/7/2024 14:37:58 2 positive 2024 estimated_class_mean 4
9 10/8/2024 10:38:58 2 positive 2024 student_score 5
10 10/8/2024 10:38:58 2 positive 2024 estimated_class_mean 3
# ℹ 82 more rows
# ℹ Use `print(n = ...)` to see more rows

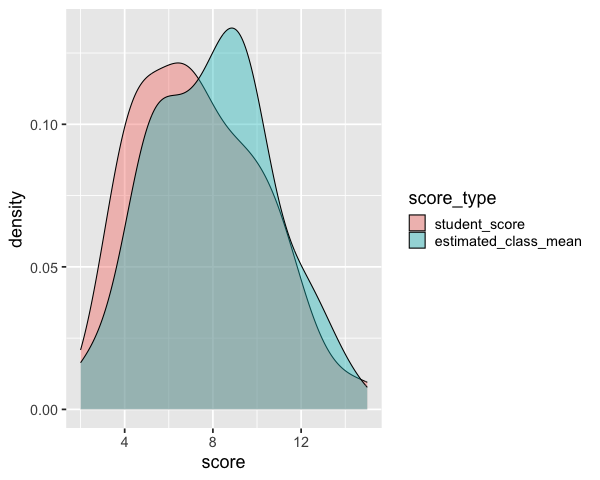

We could make a distribution plot, such as a KDE for the students score and estimated class score. From this plot we can see that on average students seemed to believe their classmates scored better, but we don’t know if this is because all students thought this, or some thought their classmates scored much better while others thought it was about the same.
%%R -w 600
ggplot(scores_this_year) +
aes(x = score,
fill = score_type) +
geom_density(alpha=0.4)

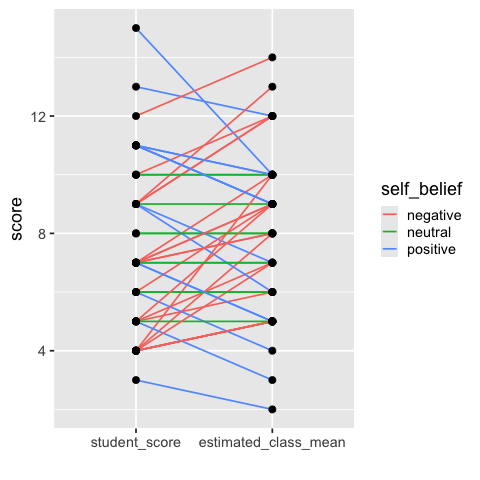

Drawing out each students score and estimated score, and then connecting them with a line allows us to easily see the trends in how many students thought their score was better or worse than the class (this is sometimes called a “slope plot”).
%%R
ggplot(scores_this_year) +
aes(x = score_type,
y = score,
group = time) +
geom_line(aes(color = self_belief), size = 0.8) +
geom_point(size=3) + labs(x='')
In addition: Warning message:
Using `size` aesthetic for lines was deprecated in ggplot2 3.4.0.
ℹ Please use `linewidth` instead.
This warning is displayed once every 8 hours.
Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
generated.

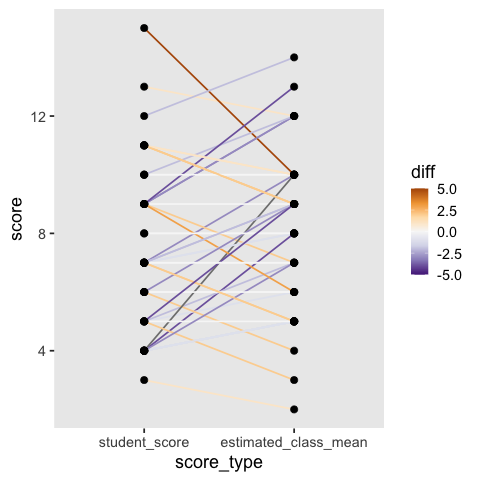

To make it easier to see how much better or worse each student score is compared to the class estimate, we can color the lines by the difference and set a diverging colormap. However, this can become quite noisy and it is not as easy to pick up the high level patterns as in the simpler visualization above (and the white lines are hard to see).
%%R
ggplot(scores_this_year) +
aes(x = score_type,
y = score,
group = time) +
geom_line(aes(color = diff), size = 0.8) +
geom_point(size=3) +
scale_color_distiller(palette = 'PuOr', limits = c(-5, 5)) +
theme(panel.grid.major = element_blank(),
panel.grid.minor = element_blank())

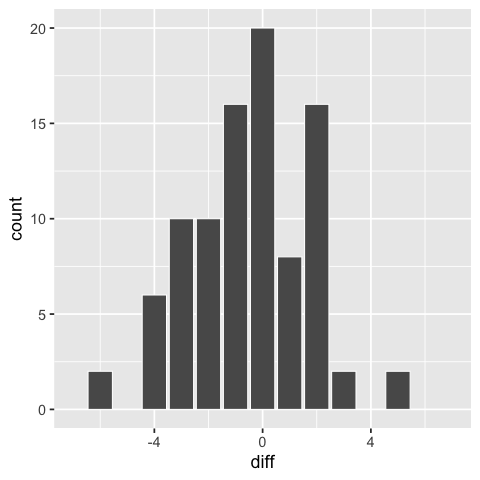

Another way we could have visualized these differences would have been as a bar plot of the differences, but we would not know the students’ score, just the difference.
%%R
ggplot(scores_this_year) +
aes(x = diff) +
geom_bar(color='white') +
scale_x_continuous(limits=c(-7, 7)) # center around 0

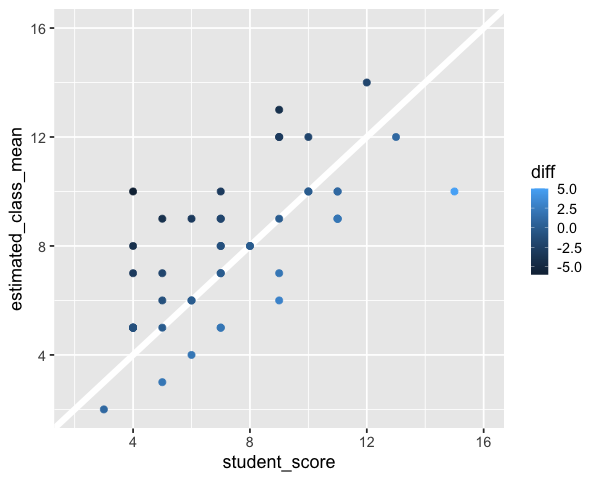

A scatter plot could also work for this comparison, ideally with a diagonal line at zero difference.
%%R -w 600
p <- ggplot(scores_this_year |> pivot_wider(names_from = score_type, values_from = score)) +
aes(x = student_score,
y = estimated_class_mean,
color = diff) +
geom_abline(slope = 1, intercept = 0, color = 'white', size = 3) +
geom_point(size = 3) +
# Compare over square plot with same axis extents makes it easier to judge trends
scale_x_continuous(limits=c(2, 16)) +
scale_y_continuous(limits=c(2, 16))
p
8.2.2. Py#
points = alt.Chart(scores_this_year).mark_circle(size=50, color='black', opacity=1).encode(
alt.X('score_type').axis(labelAngle=0),
alt.Y('score'),
alt.Detail('time')
).properties(
width=300
)
(points.mark_line(size=1.4, opacity=0.9).encode(alt.Color('self_belief').scale(range=['coral', 'green', 'steelblue'])) + points)
points = alt.Chart(scores_this_year).mark_circle(size=50, color='black', opacity=1).encode(
alt.X('score_type'),
alt.Y('score'),
alt.Detail('time')).properties(width=300)
points.mark_line(size=1.8, opacity=0.8).encode(alt.Color('diff', scale=alt.Scale(scheme='blueorange', domain=(-6, 6)))) + points
8.3. Interactivity with plotly in R (not on the quiz)#
Everything from here and onwards will not be on the quiz, but is included in case your’re interesting in learning more about the powerful interactive visualization we can build. You can find even more examples of interactive elements such as search boxes and checkboxes in the interactive secction of the Altair docs.
8.3.1. Making ggplot interactive with ggplotly()#
Plotly is a separate library that can be used to convert ggplot charts into interactive versions. Plotly does not have an easily composable interaction grammar, but instead makes a few specific functions available for us to use. One of these lets us create animations, which is very cool! Plotly interactions work out of the box in RStudio (via the Htmlwidgets library), and will work in the knitted notebooks. They should also work in JupyterLab if you first install the JupyterLab plotly extensions. They will not work in these lecture notes however, so you will need to use one of the approaches above to try it out.
To make a basic interactive version of a chart,
giving it a tooltip on hover,
a clickable legend,
and the ability to zoom,

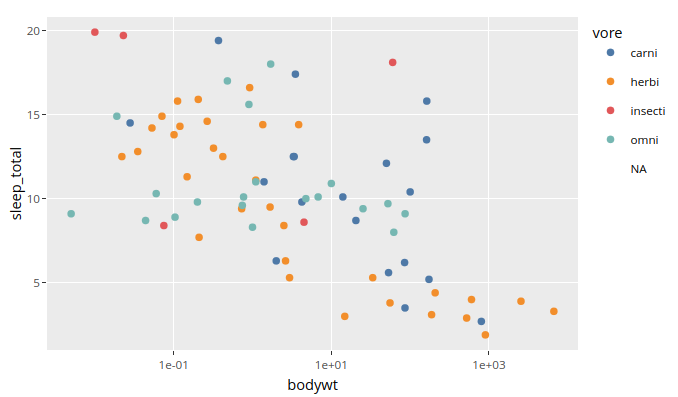

we can wrap our ggplot chart in the function ggplotly():
library(ggplot2)
library(plotly)
library(dplyr)
p <- ggplot(msleep) +
aes(x = bodywt,
y = sleep_total,
color = vore,
text = name) +
geom_point() +
scale_x_log10() +
ggthemes::scale_color_tableau()
ggplotly(p)
8.3.2. Sharing legend interactivity#
As we saw above,
we get zooming and interactive legends by default in plotly.

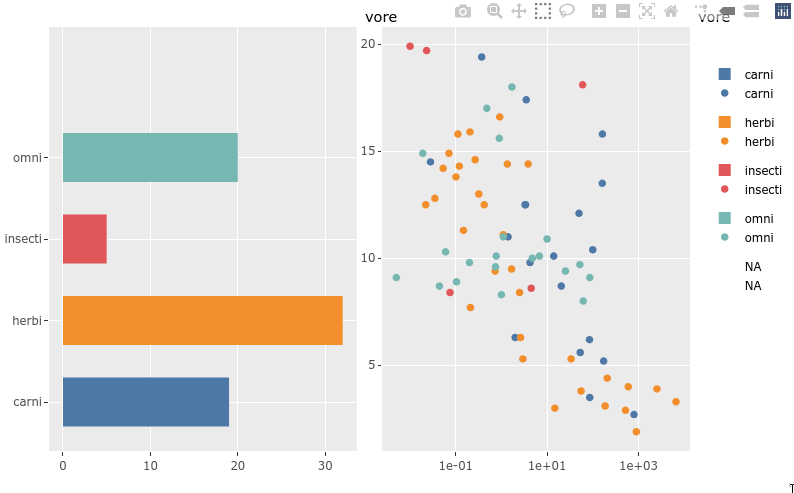

If we put two plots together in a plotly subplot layout
they share an interactive legend
(although with doubled glyphs in the legend).
There is also a highlight function
that can be used to drive non-legend based selection between two plots.
p <- ggplot(msleep) +
aes(y = vore,
fill = vore) +
geom_bar(width = 0.6) +
ggthemes::scale_fill_tableau()
p1 <- ggplotly(p, tooltip = 'text') %>% layout(dragmode = 'select')
p <- ggplot(msleep) +
aes(x = bodywt,
y = sleep_total,
color = vore,
text = name) +
geom_point() +
scale_x_log10() +
ggthemes::scale_color_tableau()
p2 <- ggplotly(p, tooltip = 'text') %>% layout(dragmode = 'select')
subplot(p1, p2)
8.3.3. Rangeslider#

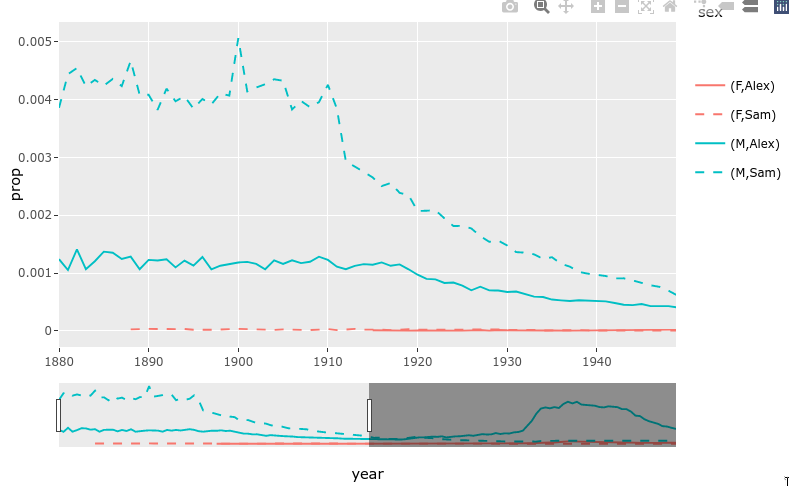

There is a built-in function for creating a small plot (a rangeslider) that can be used as a zoom widget of the bigger plot.
library(babynames)
nms <- filter(babynames, name %in% c("Sam", "Alex"))
range_p <- ggplot(nms) +
geom_line(aes(year, prop, color = sex, linetype = name))
ggplotly(range_p, dynamicTicks = TRUE) %>%
rangeslider() %>%
layout(hovermode = "x")
8.3.4. Animations!#

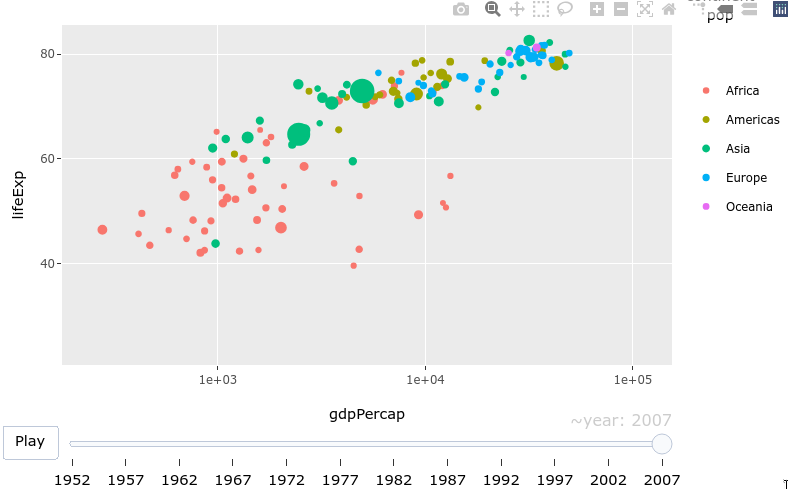

Animations are easily created by passing a column to the frame aesthetic in ggplot.
library(gapminder)
gap_p <- ggplot(gapminder, aes(gdpPercap, lifeExp, color = continent)) +
geom_point(aes(size = pop, frame = year, ids = country)) +
scale_x_log10()
ggplotly(gap_p)
8.3.5. Dropdowns#

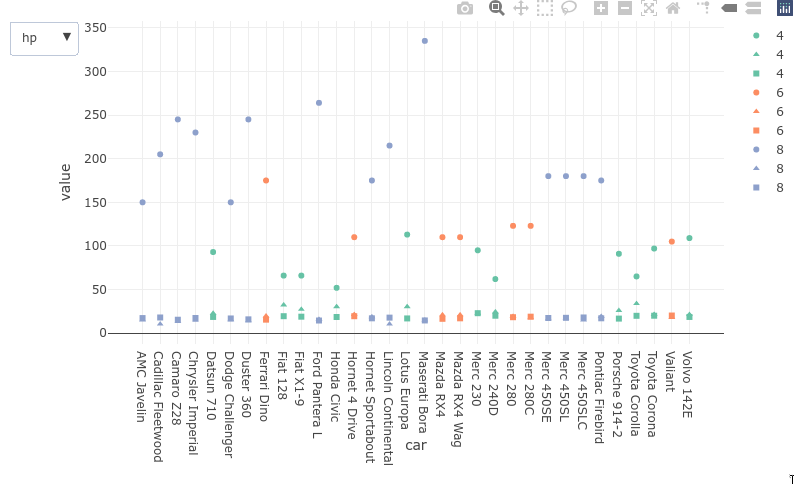

Dropdowns are a bit verbose to use with plotly and they cannot be used with ggpltoly to dynamically query and filter the data as we saw with the Altair plots. They could be used to control properties of the plot aesthetics such as marker color or which column’s plot is shown, the same goes for sliders) here is an example of the latter with ggplotly:
dat <- mtcars
dat$cyl <- factor(dat$cyl)
dat$car <- rownames(mtcars)
dat %>%
tidyr::pivot_longer(c(mpg, hp, qsec)) %>%
plot_ly(x = ~car, y = ~value, color = ~cyl, symbol = ~name) %>%
add_trace(type='scatter', mode='markers', name = ~cyl) %>%
layout(
updatemenus = list(
list(
type = "list",
label = 'Category',
buttons = list(
list(method = "restyle",
args = list('visible', c(TRUE, FALSE, FALSE)),
label = "hp"),
list(method = "restyle",
args = list('visible', c(FALSE, TRUE, FALSE)),
label = "mpg"),
list(method = "restyle",
args = list('visible', c(FALSE, FALSE, TRUE)),
label = "qsec")
)
)
)
)
8.4. Bindings different elements to selection events in Altair (not on the quiz)#
8.4.1. Reading in data#
import altair as alt
import pandas as pd
from vega_datasets import data
# Simplify working with large datasets in Altair
alt.data_transformers.enable('vegafusion')
# Load the R cell magic
%load_ext rpy2.ipython
The rpy2.ipython extension is already loaded. To reload it, use:
%reload_ext rpy2.ipython
movies = (
data.movies()
.drop(columns=['US_DVD_Sales', 'Director', 'Source', 'Creative_Type'])
.dropna(subset=['Running_Time_min', 'Major_Genre', 'Rotten_Tomatoes_Rating', 'IMDB_Rating', 'MPAA_Rating'])
.assign(
Release_Year=lambda df: pd.to_datetime(df['Release_Date']).dt.year,
Title=lambda df: df['Title'].astype(str)
)
.reset_index(drop=True))
movies
| Title | US_Gross | Worldwide_Gross | Production_Budget | Release_Date | MPAA_Rating | Running_Time_min | Distributor | Major_Genre | Rotten_Tomatoes_Rating | IMDB_Rating | IMDB_Votes | Release_Year | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | Broken Arrow | 70645997.0 | 148345997.0 | 65000000.0 | Feb 09 1996 | R | 108.0 | 20th Century Fox | Action | 55.0 | 5.8 | 33584.0 | 1996 |
| 1 | Brazil | 9929135.0 | 9929135.0 | 15000000.0 | Dec 18 1985 | R | 136.0 | Universal | Black Comedy | 98.0 | 8.0 | 76635.0 | 1985 |
| 2 | The Cable Guy | 60240295.0 | 102825796.0 | 47000000.0 | Jun 14 1996 | PG-13 | 95.0 | Sony Pictures | Comedy | 52.0 | 5.8 | 51109.0 | 1996 |
| 3 | Chain Reaction | 21226204.0 | 60209334.0 | 55000000.0 | Aug 02 1996 | PG-13 | 106.0 | 20th Century Fox | Action | 13.0 | 5.2 | 15817.0 | 1996 |
| 4 | City Hall | 20278055.0 | 20278055.0 | 40000000.0 | Feb 16 1996 | R | 111.0 | Sony Pictures | Drama | 55.0 | 6.1 | 9908.0 | 1996 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 973 | Zoolander | 45172250.0 | 60780981.0 | 28000000.0 | Sep 28 2001 | PG-13 | 89.0 | Paramount Pictures | Comedy | 62.0 | 6.4 | 69296.0 | 2001 |
| 974 | Zombieland | 75590286.0 | 98690286.0 | 23600000.0 | Oct 02 2009 | R | 87.0 | Sony Pictures | Comedy | 89.0 | 7.8 | 81629.0 | 2009 |
| 975 | Zack and Miri Make a Porno | 31452765.0 | 36851125.0 | 24000000.0 | Oct 31 2008 | R | 101.0 | Weinstein Co. | Comedy | 65.0 | 7.0 | 55687.0 | 2008 |
| 976 | The Legend of Zorro | 45575336.0 | 141475336.0 | 80000000.0 | Oct 28 2005 | PG | 129.0 | Sony Pictures | Adventure | 26.0 | 5.7 | 21161.0 | 2005 |
| 977 | The Mask of Zorro | 93828745.0 | 233700000.0 | 65000000.0 | Jul 17 1998 | PG-13 | 136.0 | Sony Pictures | Adventure | 82.0 | 6.7 | 4789.0 | 1998 |
978 rows × 13 columns
movies.info()
<class 'pandas.core.frame.DataFrame'>
RangeIndex: 978 entries, 0 to 977
Data columns (total 13 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 Title 978 non-null object
1 US_Gross 978 non-null float64
2 Worldwide_Gross 978 non-null float64
3 Production_Budget 977 non-null float64
4 Release_Date 978 non-null object
5 MPAA_Rating 978 non-null object
6 Running_Time_min 978 non-null float64
7 Distributor 977 non-null object
8 Major_Genre 978 non-null object
9 Rotten_Tomatoes_Rating 978 non-null float64
10 IMDB_Rating 978 non-null float64
11 IMDB_Votes 978 non-null float64
12 Release_Year 978 non-null int32
dtypes: float64(7), int32(1), object(5)
memory usage: 95.6+ KB
8.4.2. Legends#
We saw before how we could use the bind parameter
of an altair selection
to link it to the legend of the plot.
select_genre = alt.selection_point(
fields=['Major_Genre'], # limit selection to the Major_Genre field
bind='legend'
)
alt.Chart(movies).mark_circle().encode(
x='Rotten_Tomatoes_Rating',
y='IMDB_Rating',
tooltip='Title',
color='Major_Genre',
opacity=alt.condition(select_genre, alt.value(0.7), alt.value(0.1))
).add_params(
select_genre
)
8.4.3. Dropdowns#
Binding to the legend doesn’t work that well in this case
since there are so many colors that the plot looks a bit messy.
Instead,
we could create a dropdown selection widget directly in Altair (alt.binding_select)
to let us choose categories without coloring the points.
Instead of binding alt.selection_point to the legend
we can pass along the dropdown we just created.
# The drop down requires an array of options, here we sort the genres alphabeitcally
genres = sorted(movies['Major_Genre'].unique())
dropdown = alt.binding_select(options=genres)
select_genre = alt.selection_point(
fields=['Major_Genre'],
bind=dropdown
)
alt.Chart(movies).mark_circle().encode(
x='Rotten_Tomatoes_Rating',
y='IMDB_Rating',
tooltip='Title',
opacity=alt.condition(select_genre, alt.value(0.7), alt.value(0.1))
).add_params(
select_genre
)
Let’s give our dropdown a better name and set the default value for the selection.
# The drop down requires an array of options, here we sort the genres alphabeitcally
genres = sorted(movies['Major_Genre'].unique())
dropdown = alt.binding_select(name='Genre ', options=genres)
select_genre = alt.selection_point(
fields=['Major_Genre'],
bind=dropdown,
value=[{'Major_Genre': 'Comedy'}])
alt.Chart(movies).mark_circle().encode(
x='Rotten_Tomatoes_Rating',
y='IMDB_Rating',
tooltip='Title',
opacity=alt.condition(select_genre, alt.value(0.7), alt.value(0.1))
).add_params(
select_genre
)
8.4.5. Slider#
In addition to dropdowns and add radio buttons we can add sliders, and checkboxes,
but there are no multiselection dropdown or range sliders.
For multiple selections, we can instead use selection_multi on other plots or legends,
and for range sliders, we can use the selection_interval on another plot.
Let’s explore the slider.
slider = alt.binding_range(name='Tomatometer ')
select_rating = alt.selection_point(
fields=['Rotten_Tomatoes_Rating'],
bind=slider
)
alt.Chart(movies).mark_circle().encode(
x='Rotten_Tomatoes_Rating',
y='IMDB_Rating',
tooltip='Title',
opacity=alt.condition(select_rating, alt.value(0.7), alt.value(0.1))
).add_params(
select_rating
)
The default behavior is to only filter points that are the exact values of the slider.
This is useful for selection widgets like the dropdown,
but for the slider we want to make comparisons
such as bigger and smaller than.
We can use alt.datum for this,
which let’s us use columns from the data
inside comparisons and more complex expression in Altair,
where it is not possible to write the column name only
(this makes it clear that is the the column name
and not just a string of the same name
that is referenced in the expression).
slider = alt.binding_range(name='Tomatometer ')
select_rating = alt.selection_point(
fields=['Rotten_Tomatoes_Rating'],
bind=slider
)
alt.Chart(movies).mark_circle().encode(
x='Rotten_Tomatoes_Rating',
y='IMDB_Rating',
tooltip='Title',
opacity=alt.condition(
alt.datum.Rotten_Tomatoes_Rating < select_rating.Rotten_Tomatoes_Rating,
alt.value(0.7), alt.value(0.1))
).add_params(
select_rating
)
We can set an explicit start value to avoid that all points appear unselected at the start, as well as define the range and step size for the slider.
slider = alt.binding_range(name='Tomatometer ', min=10, max=60, step=5)
select_rating = alt.selection_point(
fields=['Rotten_Tomatoes_Rating'],
bind=slider,
value=[{'Rotten_Tomatoes_Rating': 15}]
)
alt.Chart(movies).mark_circle().encode(
x='Rotten_Tomatoes_Rating',
y='IMDB_Rating',
tooltip='Title',
opacity=alt.condition(
alt.datum.Rotten_Tomatoes_Rating < select_rating.Rotten_Tomatoes_Rating,
alt.value(0.7), alt.value(0.1))
).add_params(
select_rating
)
A more useful function of our slider would be to filter for the year.
slider = alt.binding_range(
name='Year ', step=1,
min=movies['Release_Year'].min(), max=movies['Release_Year'].max())
select_rating = alt.selection_point(
fields=['Release_Year'],
bind=slider,
value=[{'Release_Year': 2000}]
)
alt.Chart(movies).mark_circle().encode(
x='Rotten_Tomatoes_Rating',
y='IMDB_Rating',
tooltip='Title',
opacity=alt.condition(
alt.datum.Release_Year < select_rating.Release_Year,
alt.value(0.7), alt.value(0.1))
).add_params(
select_rating
)
8.4.6. Driving slider-like selections from another plot instead#
The plot above has several problems. Since there is no range slider, we would have to add a second slider to filter a range of values. And it is a bit unclear why the max is 2040, I guess there is a mislabeled movie, but can’t be sure. I also don’t get any information about which years have the most releases.
Due to Altair’s consistent interaction grammar, we can bind a similar selection event to a bar chart (or any chart type we want) instead of the slider, and change it to an interval to be able to select a range of points.
select_year = alt.selection_point(
fields=['Release_Year'],
value=[{'Release_Year': 2000}]
)
bar_slider = alt.Chart(movies).mark_bar().encode(
x='Release_Year',
y='count()').properties(height=50).add_params(select_year)
scatter_plot = alt.Chart(movies).mark_circle().encode(
x='Rotten_Tomatoes_Rating',
y='IMDB_Rating',
tooltip='Title',
opacity=alt.condition(
select_year,
alt.value(0.7), alt.value(0.1)
)
)
scatter_plot & bar_slider
It is great to be able to see where most movies are along the year axis! This bar plot is a much more informative driver of the selection event compared to the slider.
Now let’s switch it over an interval selection,
I will change from fields to encodings here,
to indicate that we only want to drag the interval along the x-axis
and use whatever column is on that axis.
I will also fix the formatting of the x-axis
to display years properly by using the year()
function on the date column directly
(similar to how we have used sum(), mean() etc before).
select_year = alt.selection_interval(encodings=['x'])
bar_slider = alt.Chart(movies).mark_bar().encode(
x='year(Release_Date)',
y='count()').properties(height=50).add_params(select_year)
scatter_plot = alt.Chart(movies).mark_circle().encode(
x='Rotten_Tomatoes_Rating',
y='IMDB_Rating',
tooltip='Title',
opacity=alt.condition(
select_year,
alt.value(0.7), alt.value(0.1)
)
)
scatter_plot & bar_slider
Now let’s ask ourselves “What is a widget?”. Is there any distinct difference between this small plot and the slider that disqualifies it from being called a widget? At this point, I think is mostly comes down to looks, so let’s make our bar selector appear more “widgety”.
select_year = alt.selection_interval(encodings=['x'])
# Filter out a few of the extreme value to make it look better
movies_fewer_years = movies.query('1994 < Release_Year < 2030')
bar_slider = alt.Chart(movies_fewer_years).mark_bar().encode(
alt.X('year(Release_Date)', title='', axis=alt.Axis(grid=False)),
alt.Y('count()', title='', axis=None)
).properties(
height=20,
width=100
).add_params(
select_year
)
scatter_plot = alt.Chart(movies_fewer_years).mark_circle().encode(
x='Rotten_Tomatoes_Rating',
y='IMDB_Rating',
tooltip='Title',
opacity=alt.condition(
select_year,
alt.value(0.7), alt.value(0.1)
)
)
(scatter_plot & bar_slider).configure_view(strokeWidth=0)
If it looks like a duck… then it is a widget to me!
8.4.7. Multi-dimensional legends#
Realizing the mutual properties between what we traditionally refer to as plots and legends,
means that it is almost only your imagination that sets the limits.
For example,
legends are usually one-dimensional,
but it doesn’t have to be that way!
Let’s make a three dimensional legend and link two of those dimensions to a selection.
We will use the Altair composition operator &
for triggering the condition only at the intersection of all selections.
# To make the final result bit more elegant, I am filtering out a few low count categories
top_genres = movies_fewer_years['Major_Genre'].value_counts()[:5].index
mpaa_rating_clean = [rate for rate in mpaa_rating if rate != 'Not Rated']
movies_clean = movies_fewer_years.query('Major_Genre in @top_genres and MPAA_Rating in @mpaa_rating_clean')
select_genre_and_mpaa = alt.selection_point(
fields=['Major_Genre', 'MPAA_Rating'],
empty=True,
nearest=True)
multidim_legend = alt.Chart(movies_clean, title=alt.TitleParams(text='Genre and Rating', fontSize=10, dx=-15)).mark_point(filled=True).encode(
alt.X('MPAA_Rating', title=''),
alt.Y('Major_Genre', title='', axis=alt.Axis(orient='right')),
alt.Size('count()', legend=None),
alt.Color('Major_Genre', legend=None),
opacity=alt.condition(select_genre_and_mpaa, alt.value(1), alt.value(0.2))
# alt.Shape('MPAA_Rating', legend=None)
).add_params(select_genre_and_mpaa).properties(width=100)
select_year = alt.selection_interval(empty=True, encodings=['x'])
# Filter out a few of the extreme value to make it look better
bar_slider = (
alt.Chart(movies_clean, title=alt.TitleParams(text='Production year', fontSize=10, dx=-15)).mark_bar().encode(
alt.X('year(Release_Date)', title='', axis=alt.Axis(grid=False),
scale=alt.Scale(domain=[1995, 2012])),
alt.Y('count()', title='', axis=None))
.properties(height=20, width=100)
.add_params(select_year))
select_time = alt.selection_interval(empty=True, encodings=['x'])
# Filter out a few of the extreme value to make it look better
bar_slider_time = (
alt.Chart(movies_clean, title=alt.TitleParams(text='Running time', fontSize=10, dx=-15)).mark_bar().encode(
alt.X('Running_Time_min', title='', axis=alt.Axis(grid=False)),
alt.Y('count()', title='', axis=None))
.properties(height=20, width=100)
.add_params(select_time))
scatter_plot = alt.Chart(movies_clean).mark_circle().encode(
x='Rotten_Tomatoes_Rating',
y='IMDB_Rating',
color='Major_Genre',
tooltip='Title',
opacity=alt.condition(
select_year & select_genre_and_mpaa & select_time,
alt.value(0.7), alt.value(0.1)))
(scatter_plot | (bar_slider & bar_slider_time & multidim_legend)).configure_view(stroke=None)
(scatter_plot | (bar_slider & bar_slider_time & multidim_legend)).configure_view(stroke=None).save('chart-widgets.html')
Building advanced layouts like this is not the most common use case for notebook interactivity when it is focused on exploration. However, it can be nice to know how to implement these features when creating a more polished notebook to share with someone.
