Shiny Modules

Not to be confused with a Python Module

View slides in full screen

Shiny modules

  • Share a few tips, tricks, and “code smells” for using Shiny modules

  • Shiny modules:

    • Namespaceing (isolation)
    • Reuse code (just like a normal function)
    • Do not need to worry about duplicate IDs as you reuse modules

  • Similar to a normal function

    • Inputs and outputs (not to be confused with Shiny inputs and outputs)

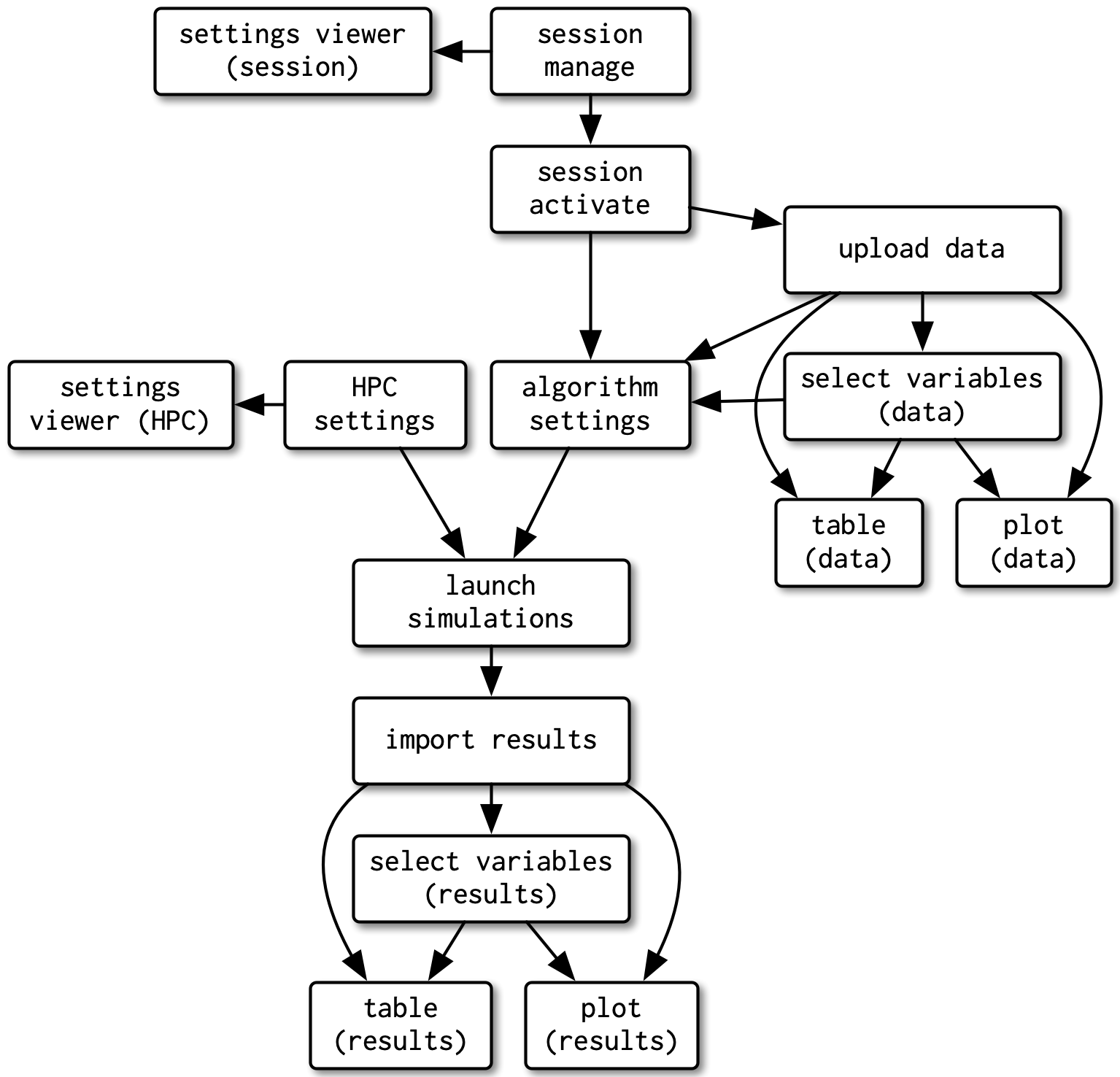

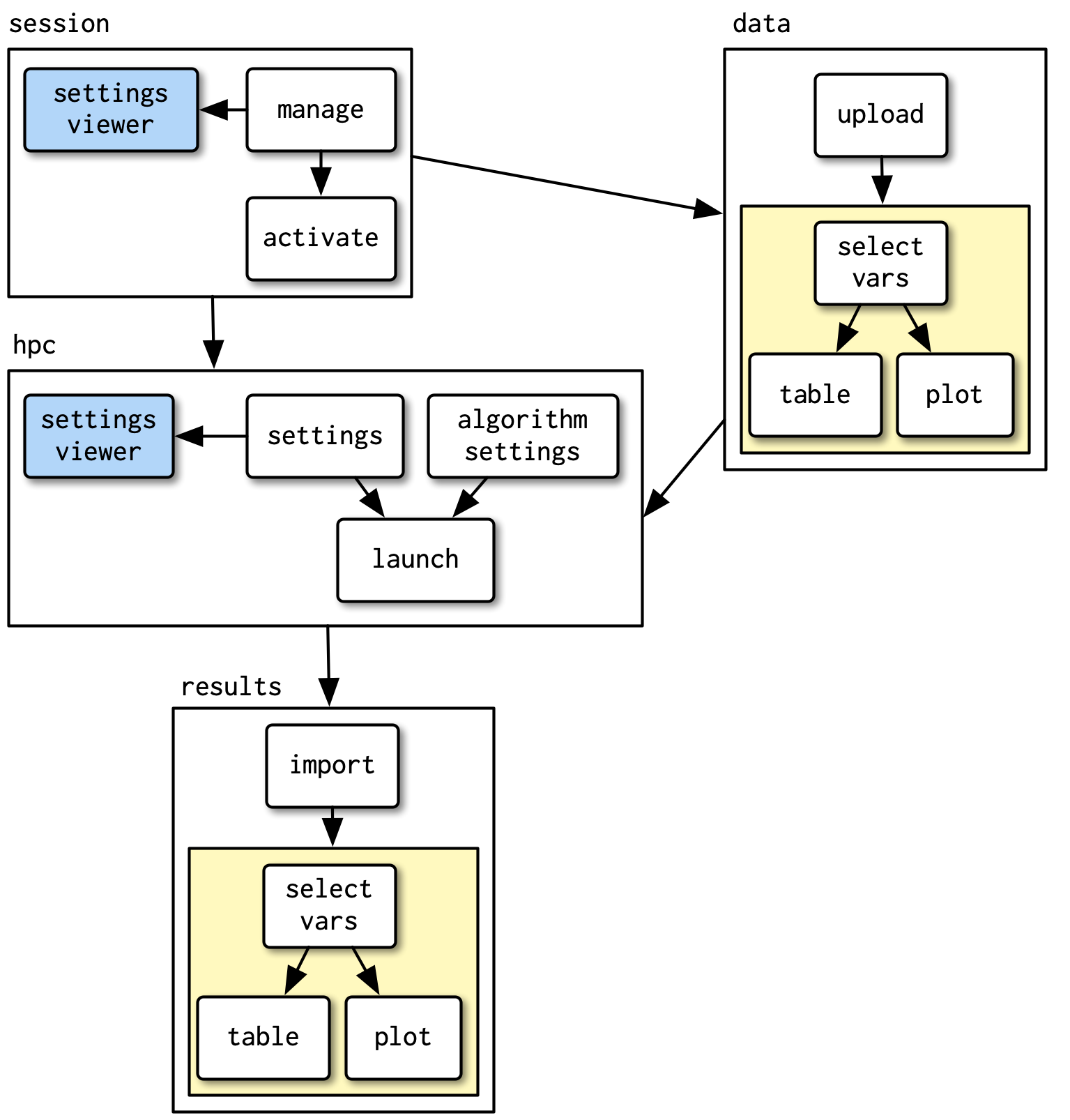

Motivation

Code smell - Repeated elements

#| '!! shinylive warning !!': |
#|   shinylive does not work in self-contained HTML documents.
#|   Please set `embed-resources: false` in your metadata.
#|  standalone: true
#|  components: [editor, viewer]
#|  layout: horizontal
#|  viewerHeight: 500

from shiny import App, ui

app_ui = ui.page_fluid(
    ui.input_slider("n1", "N", 0, 100, 20),
    ui.input_slider("n2", "N", 0, 100, 20),
    ui.input_slider("n3", "N", 0, 100, 20),
    ui.input_slider("n4", "N", 0, 100, 20),
    ui.input_slider("n5", "N", 0, 100, 20),
    ui.input_slider("n6", "N", 0, 100, 20),
)

app = App(app_ui, None)

Code smell - multiple function calls

#| '!! shinylive warning !!': |
#|   shinylive does not work in self-contained HTML documents.
#|   Please set `embed-resources: false` in your metadata.
#|  standalone: true
#|  components: [editor, viewer]
#|  layout: horizontal
#|  viewerHeight: 500

from shiny import App, ui


def my_slider(id):
    return ui.input_slider(id, "N", 0, 100, 20)


app_ui = ui.page_fluid(
    my_slider("n1"),
    my_slider("n2"),
    my_slider("n3"),
    my_slider("n4"),
    my_slider("n5"),
)

app = App(app_ui, None)

Code smell - UI via list iteration

#| '!! shinylive warning !!': |
#|   shinylive does not work in self-contained HTML documents.
#|   Please set `embed-resources: false` in your metadata.
#|  standalone: true
#|  components: [editor, viewer]
#|  layout: horizontal
#|  viewerHeight: 500
from shiny import App, ui


def my_slider(id):
    return ui.input_slider(id, "N", 0, 100, 20)


ids = ["n1", "n2", "n3", "n4", "n5"]

app_ui = ui.page_fluid([my_slider(x) for x in ids])

app = App(app_ui, None)

Code smell - iterating over multiple lists

#| '!! shinylive warning !!': |
#|   shinylive does not work in self-contained HTML documents.
#|   Please set `embed-resources: false` in your metadata.
#|  standalone: true
#|  components: [editor, viewer]
#|  layout: horizontal
#|  viewerHeight: 500
from shiny import App, ui

def my_slider(id, label):
    return ui.input_slider(id, label + " Number", 0, 100, 20)

numbers = ["n1", "n2", "n3", "n4", "n5"]
labels = ["First", "Second", "Third", "Fourth", "Fifth"]

app_ui = ui.page_fluid(
    [my_slider(x, y) for x, y in zip(numbers, labels)]
)

app = App(app_ui, None)

IDs need to be unique

This will work once, not more.

#| '!! shinylive warning !!': |
#|   shinylive does not work in self-contained HTML documents.
#|   Please set `embed-resources: false` in your metadata.
#|  standalone: true
#|  components: [editor, viewer]
#|  layout: horizontal
#|  viewerHeight: 500
from shiny import App, ui
from shiny import App, render, ui

def io_row():
    return ui.layout_columns(
        ui.card(ui.input_text("text_input", "Enter text")),
        ui.card(ui.output_text("text_output")),
    )

app_ui = ui.page_fluid(
    io_row(),
)

def server(input, output, session):
    @render.text
    def text_output():
        return f'You entered "{input.text_input()}"'

app = App(app_ui, server)

Modules are functions

  • Functions that reads reactive input
  • Not to be confused with passing a reactive value into a function

Shiny module

#| '!! shinylive warning !!': |
#|   shinylive does not work in self-contained HTML documents.
#|   Please set `embed-resources: false` in your metadata.
#|  standalone: true
#|  components: [editor, viewer]
#|  layout: horizontal
#|  viewerHeight: 500

from shiny import App, module, render, ui


@module.ui
def row_ui():
    return ui.layout_columns(
        ui.card(ui.input_text("text_in", "Enter text")),
        ui.card(ui.output_text("text_out")),
    )


@module.server
def row_server(input, output, session):
    @output
    @render.text
    def text_out():
        return f'You entered "{input.text_in()}"'


extra_ids = ["row_3", "row_4", "row_5"]

app_ui = ui.page_fluid(row_ui("row_1"), row_ui("row_2"), [row_ui(x) for x in extra_ids])


def server(input, output, session):
    row_server("row_1")
    row_server("row_2")
    [row_server(x) for x in extra_ids]


app = App(app_ui, server)
